Description

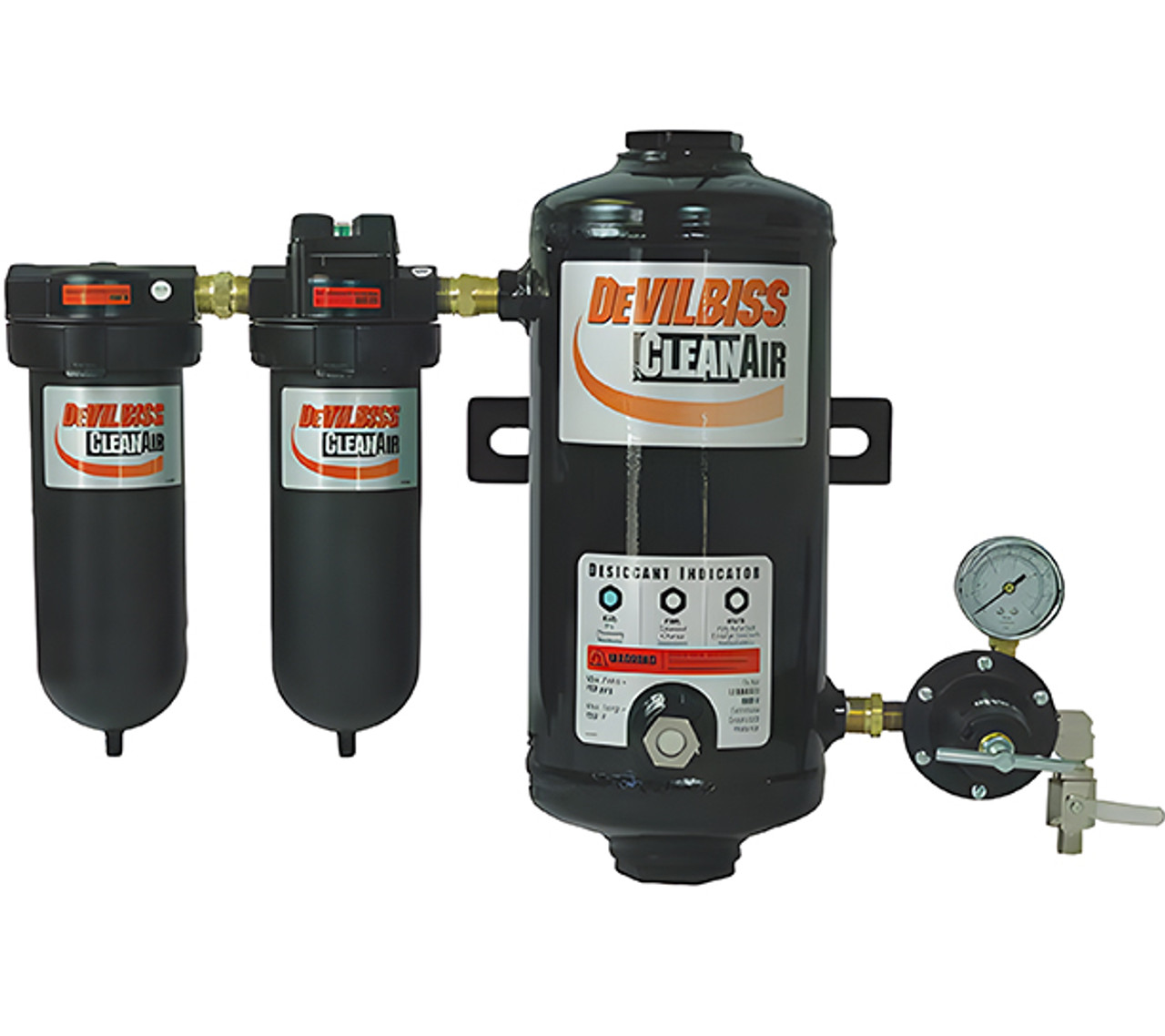

The DeVilbiss DAD500 Desiccant Air Dryer System is a 25 CFM point-of-use unit that eliminates moisture, oil, water, and dirt from compressed air lines to ensure high-quality paint finishes. It features a three-stage drying and filtering system: first-stage centrifugal filter removes oil, water, and dirt down to 5 microns; second-stage coalescer removes oil aerosols and particles down to 0.01 microns; third-stage low-dusting desiccant traps water vapor. Includes automatic bowl drains, filter change indicators, air regulator, and shut-off valve. Ideal for auto body shops and collision repair to prevent costly redos from contaminated air.
Key Features & Compatibility:
- 25 CFM capacity at 150 PSI
- Three-stage filtration: 5-micron particulate, 0.01-micron coalescer, desiccant drying
- Automatic bowl drains for maintenance-free operation
- Filter change indicators for coalescer and desiccant
- Includes air regulator and main shut-off valve
- 1/2" FNPT inlet/outlet connections
- -40°F dew point, 150°F max temperature
- Compatible with spray guns and paint booths
