Product Description

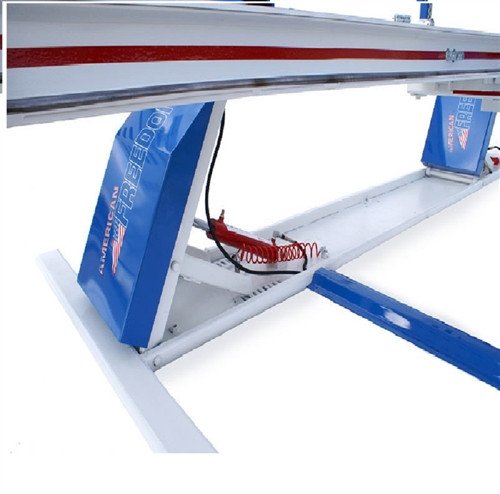

20' American Freedom Frame Machine with 2 Towers 9014202 - Choose between 20 ft. or 22 ft., 2, 3 or 4 tower models. Quick connect no-drip hydraulic couplers, four each side, eight total. Movable towers that ride on a track. MADE IN THE USA! This is the only machine that looks like this that is made in the USA. (Just Ask)Made in the USA Available in 2 tower, 3 tower, and 4 tower configurations. Please call to designate configurations. Length of bed top: 20 ft. Length w/towers extended: 24 ft. 1 in. Width of bed: 88 in. Width w/towers extended: 11 ft. 4 in. Width of treadway: 26.5 in. Width between treadways: 35.5 in. Overall height: 9 ft. 11 in. Tower heads lowered: 9 ft. 1 in. Loading height: 12 in. Working height: 14 in. up to 42 in. Hydraulics: 10 ton, all electric over hyd. or all air over hyd. (electric over hyd. pump shown) Power required: 120v, 20 amp, dedicated service for electric over hyd. model Optional tower configurations: 2, 3 or 4 towers Tie downs: 222 Specifications are subject to change without notice.
Compare to Chief, Titan, and S21 frame machines.
Product Videos
Custom Field
Product Reviews
2 Reviews Hide Reviews Show Reviews
-
Freedom 2 Tower frame machine
I negotiated a good price with your company. You made the process easy. Kathi made sure that we had updates and tracking #'s available quickly. Jim also was helpful
-
Nice Frame rack
we Purchased this and we like it a lot. it is a lot of work to install we did it in about 6- hours, Thanks jim for recommending the forklift, I do not think we could have done it without it. The Ez Frame clamps are also very nice.
