Description

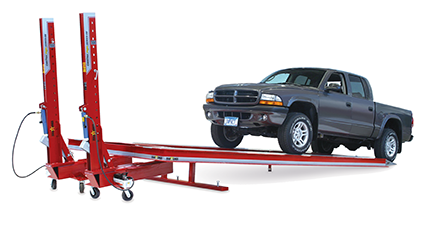

The Star-A-Liner Cheetah II 24' Frame Machine 9011240 is a heavy-duty USA-made frame rack designed for unibody cars up to full-size four-door heavy-duty dually trucks, featuring 10-ton hydraulic pulling power with 360-degree radius and 9,000 lb lift capacity (12,000 lb with two cylinders).
Key Features & Compatibility:
- Made in the USA
- 10-ton hydraulic pulling power
- 360-degree pulling radius
- 9,000 lb lift capacity (12,000 lb with two cylinders)
- 100 psi air required for hydraulics
- Compare to Chief, Titan, and S21 frame machines
- Technical Specifications:
- Length of bed (top): 24 ft. (732 cm)
- Length with towers extended: 29 ft. 10 in. (909 cm)
- Width of bed: 92 in. (234 cm)
- Width with towers extended: 14 ft. (427 cm)
- Width of treadway: 28 in. (71 cm)
- Width between treadway: 36 in. (91 cm)
- Overall height: 8 ft. 6 in. (259 cm)
- Tower height: 6 ft. 8 in. (203 cm)
- Working height: 24 in. (61 cm)
- Weight: 7680 lbs. (3484 kg)
Perfect for:
- Unibody to full-size truck frame repairs
- Heavy-duty collision straightening and pulling
- Professional auto body shops needing versatile USA-made equipment
