Description

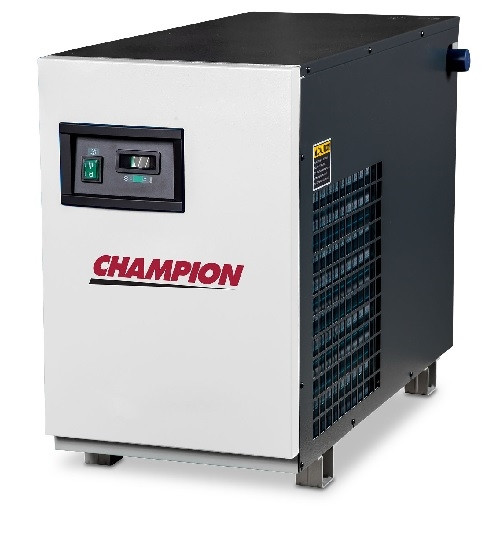

The Champion CGD100A1 100 CFM Refrigerated Air Dryer is the collision and automotive shop essential for delivering clean, dry compressed air – a non-cycling unit that chills air to a stable ISO 8573-1 Class 4 to 5 pressure dew point (38°F PDP) using advanced heat exchanger technology to remove moisture, preventing corrosion in tools, lines, and equipment. Rated for 100 CFM at 100 psig/100°F inlet with 120°F max inlet temp and 232 psig max pressure, this compact 115V/1PH dryer features epoxy powder-coated steel housing, 1" NPT connections, R134A refrigerant, and built-in pre-filter for immediate installation on any compressor system.
Key Features & Compatibility:
- 100 CFM capacity at 100 psig/100°F
- ISO 8573-1 Class 4-5 pressure dew point
- 115V/1PH/60Hz, 3/4 HP compressor
- Max inlet temp 120°F, max pressure 232 psig
- 1" NPT connections, R134A refrigerant
- Built-in 3-micron pre-filter
- Dimensions: 23.67"H x 14.28"W x 32.33"D
Perfect for:
- Collision shop compressor moisture control
- Autobody tool & line protection
- Professional refrigerated air drying
- High-volume compressed air systems
- USA stocked Champion dryers
- Any 25-30 HP compressor setup
