Description

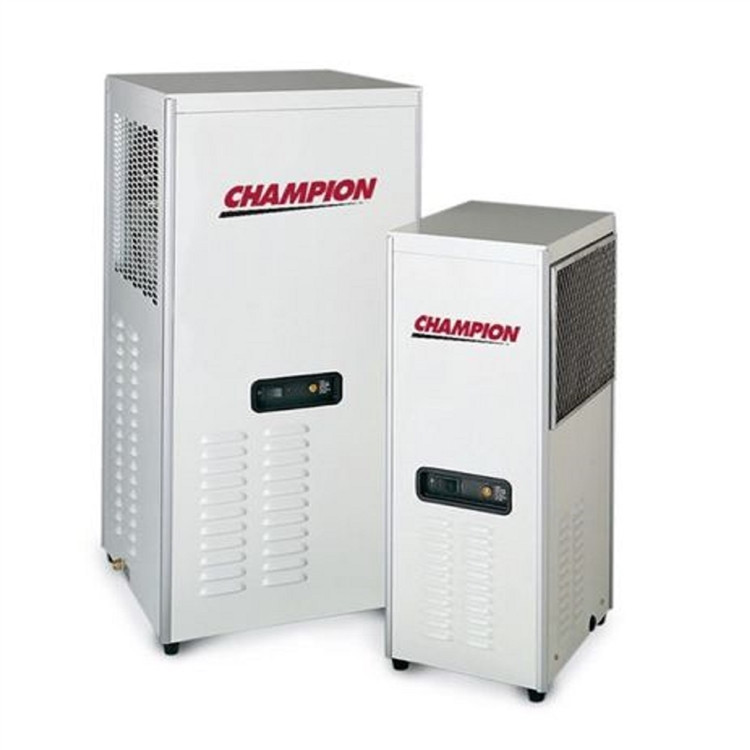

The Champion CRH35 35 CFM High Temperature Refrigerated Air Dryer is the collision and automotive shop essential for handling hot discharge air from reciprocating compressors without aftercoolers – a compact non-cycling unit with 35 CFM at 125 PSIG, 41 CFM at 175 PSIG, and up to 180°F inlet temperature capability that chills air to 50°F dew point for moisture removal, preventing corrosion in tools and lines. Measuring 28" H x 10" W x 13" D with 1/2" NPT connections, 115V/1PH power, and automatic zero-loss drain, this epoxy-coated dryer integrates particle/oil filtration for immediate clean, dry air in repair environments.
Key Features & Compatibility:
- 35 CFM @ 125 PSIG, 41 CFM @ 175 PSIG
- 250 PSI max pressure, 180°F max inlet temp
- 50°F dew point, 1/2" NPT connections
- 115V/1PH, automatic zero-loss drain
- Built-in particle/oil pre-filter
- Epoxy powder-coated steel housing
- Dimensions: 28"H x 10"W x 13"D
Perfect for:
- Collision shop hot air compressor drying
- Autobody tool & line moisture control
- Reciprocating compressor aftercooling
- Professional high-temp air treatment
