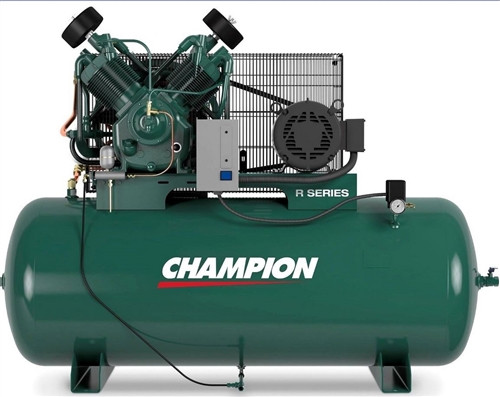

Champion HR10-12 10 HP 120gal Horizontal Champion Advantage Series Air Compressor

Product Description

Champion HR10-12ADV 10 HP Horizontal Tank Air Compressor

Advantage Standard Features: Simplex

Premium Accessories Included- Just Choose your voltage

• Heavy Duty Two-Stage, Splash-Lubricated Air Compressor Pump(s)
• Multi-Finned Cylinders
• Integral Cylinder Head
• Intercoolers for Cooling Between Stages
• Reliable High Flow Disc Valves
• Tapered Roller Main Bearings
• Balanced Crankshaft
• Oil-Level Site Glass
• Centrifungal Unloader for Loadless Starting
• 0-300 PSIG Air Pressure Gauge
• Factory Fill with ChampLub Lubricants
• Mounted Nema 1 Control Panel
• Low Oil Stop Control
• Electric - Auto Tank Drain
• Vibration Isolators
• R-Series, two stage pump
• Loadless Starting
• Intake Filter
• Start/Stop Pressure Switch Control
• 1800 RPM Motor
• ASME Coded Receiver
  • Pressure Relief Valve
  • Service Valve
  • Drain Valve
  • Pressure Gauge
• Enclosed Belt Guard
• Oversized Inlet Filter

Premium Accessories Included:

• Vibration Isolator Pads | Isolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from out-of-level floor situation that could cause vibration and damage

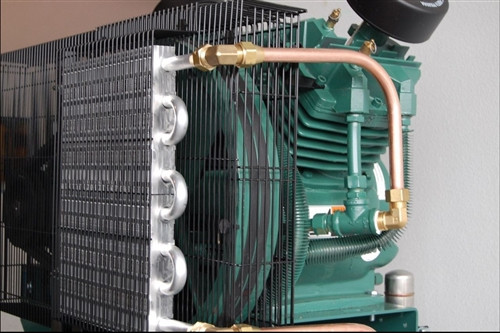

• Air-Cooled Aftercooler | The factory mounted, heavy duty, air-cooled aftercooler effectively removes up to 65% of the moisture from discharged compressed air.

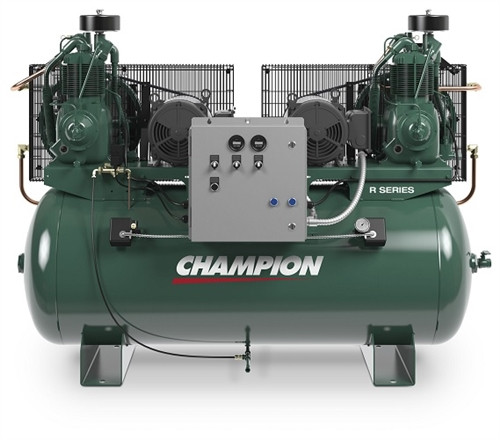

• Control Panel (Duplex units utilize two magnetic starters and alternators) | Provides thermal overload protection, and transformer (simplex only) provides reliable low voltage output to the auxiliary components. May be mounted or unmounted.

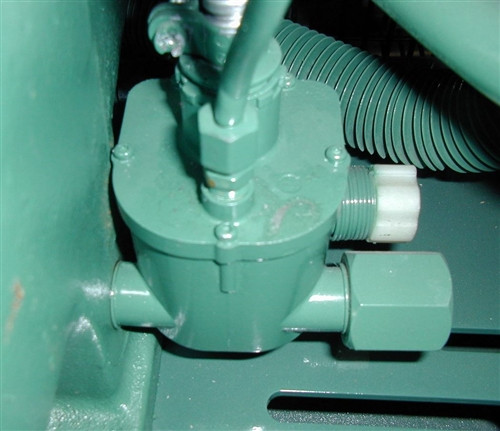

• Automatic Tank Drain | A pneumatic or adjustable electric time drain automatically discharges moisture from the receiver
• Low Oil-Level Monitor | Low oil-level monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.

Specifications:

• Tank | Horizontal
• Tank Size (Gallons) | 120
• Phase | 3
• Volts | 208 or 230
• Control Panel, Level 1 | Standard
• Panel Mounting | Standard
• Low Oil Stop Control | Standard
• Electric Tank Drain | Standard
• Vibration Isolators | Standard
• Air Cooled Aftercooler | Standard
• Dual Control | N/A
• California Compliant | Yes
• Pump Model | R30
• Pump RPM | 740
• ACFM @ 175 PSIG | 34.8
• Est Weight (lbs) | 895

________________________________________________________

TAKE NOTICE OF THIS IMPORTANT INFORMATION:

• CONFIRM CORRECT VOLTAGE & PHASE WHEN ORDERING
• FREE SHIPPING TO A COMMERCIAL ADDRESS ONLY

Compressor Pump Warranty-

STANDARD 3 YEAR

The Champion philosophy ensures long-lasting, reliable equipment.
The warranty program demonstrates confidence in our products.
Each new Champion assembled unit has a 3 year warranty on the
compressor pump against defects in materials of workmanship under
normal use and service and 1 year parts and labor on the package components.
