Description

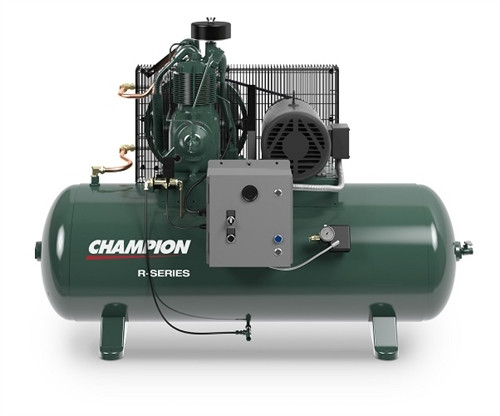

The Champion HR10-24 10 HP 240gal Horizontal Tank Simplex Air Compressor from the Advantage Series is the collision and automotive shop essential for heavy-duty stationary applications – a simplex reciprocating unit with a 10 HP 208/230V 3-phase motor driving an R30 two-stage cast-iron pump that delivers 34.8 CFM at 175 PSI, 35.7 CFM at 125 PSI, and 36.6 CFM at 80 PSI with 740 RPM on a 240-gallon horizontal ASME tank. Featuring mounted NEMA 1 control panel, start/stop pressure switch, vibration isolators, low oil stop control, electric auto tank drain, loadless starting, enclosed belt guard, and intake filter, this 1295 lb unit includes a 3-year standard pump warranty for reliable performance in frame straightening, tire service, and pneumatic tool use in demanding repair environments.
Key Features & Compatibility:
- 10 HP 208/230V 3-phase motor
- R30 two-stage pump – 34.8 CFM @ 175 PSI, 740 RPM
- 240-gallon horizontal ASME tank
- NEMA 1 control panel w/ start/stop switch
- Low oil stop, electric auto tank drain
- Vibration isolators, loadless starting
- Enclosed belt guard & intake filter
- 3-year standard pump warranty
Perfect for:
- Collision shop stationary air power
- Autobody frame & tire service
- Heavy-duty reciprocating applications
