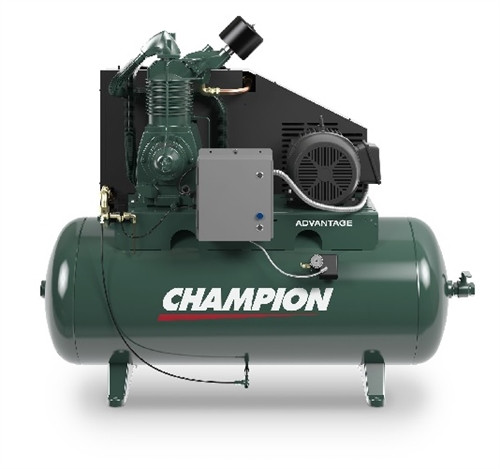

Champion HR15-12 15 HP 120gal Horizontal Champion Advantage Series Air Compressor

The Champion HR15-12 15 HP 120gal Horizontal Advantage Series Air Compressor is a simplex reciprocating unit with a 15 HP 208/230/460V 3-phase motor driving an R40 two-stage cast-iron pump that delivers 54.1 CFM at 175 PSI, 59.9 CFM at 125 PSI, and 61.6 CFM at 80 PSI with 776 RPM on a 120-gallon horizontal ASME tank. Featuring magnetic starter, vibration isolator pads, pneumatic auto tank drain, air-cooled aftercooler, low oil level switch, and NEMA 1 control panel, this 1210 lb unit includes a 5-year pro-rated pump warranty for reliable performance in demanding industrial applications.

Key Features & Compatibility:

• 15 HP 208/230/460V 3-phase motor
• R40 two-stage pump – 54.1 CFM @ 175 PSI, 776 RPM
• 120-gallon horizontal ASME tank
• Magnetic starter & low oil switch
• Vibration isolator pads & auto tank drain
• Air-cooled aftercooler
• 5-year pro-rated pump warranty
