Product Description
The Champion Quick Lock XCQL-LV series – complete lockable ball valve connector kit for Champion aluminum air piping systems, ensuring safe shutdown during maintenance without air leaks. Available in sizes XCQL-LV-20 (3/4"), XCQL-LV-25 (1"), XCQL-LV-32 (1-1/4"), XCQL-LV-40 (1-1/2"), and XCQL-LV-50 (2") for easy integration into shop air lines. Push-to-connect design installs in minutes with no tools, while the lockable handle prevents accidental operation. Rated at 300 PSI and -4°F to 300°F, this lightweight aluminum kit with power-coated finish resists corrosion and meets FDA needs. Perfect for auto shops, garages, and industrial setups needing reliable, reusable air flow control.
Key Features & Compatibility:
- Lockable ball valve for safe isolation
- Push-to-connect aluminum fittings
- Sizes: 20mm (3/4"), 25mm (1"), 32mm (1-1/4"), 40mm (1-1/2"), 50mm (2")
- 300 PSI pressure rating
- Temperature range: -4°F to 300°F
- Reusable & easy reconfiguration
- Power-coated finish for durability
- Compatible with Champion Quick Lock piping

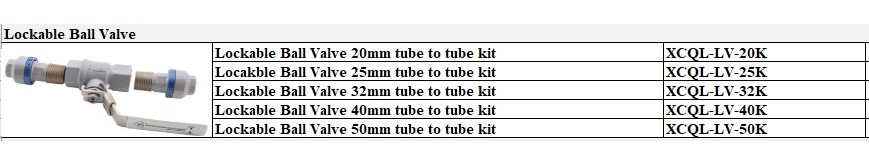

Available sizes:
- XCQL-LV-20K (20mm / 3/4")
- XCQL-LV-25K (25mm / 1")
- XCQL-LV-32K (32mm / 1-1/4")
- XCQL-LV-40K (40mm / 1-1/2")
- XCQL-LV-50K (50mm / 2")
Additional information:
- Choose desired connectors from our drop down window
- Select desired thread and pipe size
- Select number of items requested
- Add to cart and continue shopping or check out
- NOTE: $75.00 Minimum for Champion Products
- All Quick Lock Product Line is No Cancel/No Returns
