Description
The Champion Quick Lock XCQL-SC series – efficient saddle clamp reducers for adding outlet branches to existing Champion aluminum air pipes without cutting or welding. Clamp-style design secures to main run pipes (32mm to 50mm) with a reduced outlet (20mm to 25mm) for leak-free drops in compressed air systems. Rated at 300 PSI and -4°F to 300°F, with power-coated aluminum for corrosion resistance and FDA compliance where needed. Includes drill jig for easy install – reusable and perfect for expanding air lines in auto shops, garages, and industrial setups.
Key Features & Compatibility:
- Saddle clamp reducer for main run to outlet branch
- Push-to-connect outlet, clamp to main pipe
- Aluminum construction, 300 PSI pressure rating
- Temperature range: -4°F to 300°F
- Reusable & easy reconfiguration
- Power-coated for durability & corrosion resistance
- FDA compliant options available
- Fits Champion Quick Lock aluminum piping

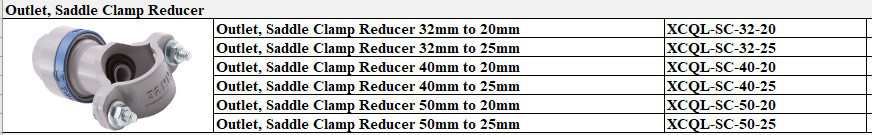

Available sizes:
- XCQL-SC-32-20 (32mm run x 20mm outlet)
- XCQL-SC-32-25 (32mm run x 25mm outlet)
- XCQL-SC-40-20 (40mm run x 20mm outlet)
- XCQL-SC-40-25 (40mm run x 25mm outlet)
- XCQL-SC-50-20 (50mm run x 20mm outlet)
- XCQL-SC-50-25 (50mm run x 25mm outlet
Check out and add to cart process
- Choose deisired connectors from our drop down window
- Select desired thread and pipe size
- Select number of items requested
- Add to cart and continue shopping or check out
- All Quick Lock Product Line is No Cancel/No Returns
