Description

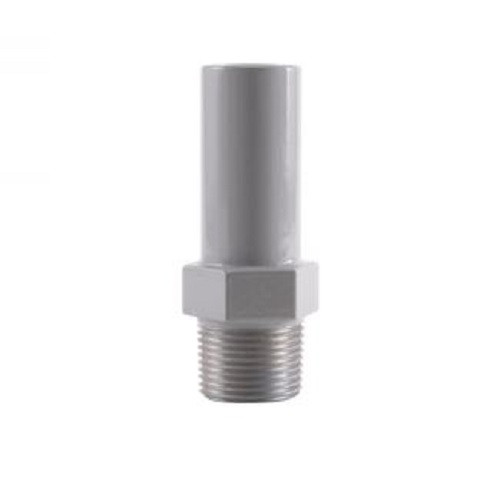

The Champion Quick Lock XCQL-SA series – versatile stem adapter connectors for linking Champion aluminum air pipes to male NPT threaded outlets in shops and garages. Push-to-connect on the pipe end and male NPT (1/4" to 1") on the other, these lightweight aluminum adapters ensure leak-free connections for compressed air systems. Rated at 300 PSI and -4°F to 300°F, with power-coated finish for corrosion resistance and FDA compliance where needed. Reusable design allows easy reconfiguration – ideal for custom setups in auto service, industrial, and fabrication environments.
Key Features & Compatibility:
- Stem adapter: push-to-connect pipe x male NPT
- Aluminum construction, 300 PSI pressure rating
- Temperature range: -4°F to 300°F
- Reusable & easy reconfiguration
- Power-coated for durability & corrosion resistance
- FDA compliant options available
- Fits Champion Quick Lock aluminum piping
Available sizes:
- XCQL-SA-14-06 (14mm pipe x 1/4" NPT)
- XCQL-SA-20-08 (20mm pipe x 3/8" NPT)
- XCQL-SA-20-08M (20mm pipe x 3/8" NPT male)
- XCQL-SA-20-12M (20mm pipe x 1/2" NPT male)
- XCQL-SA-25-08M (25mm pipe x 3/8" NPT male)
- XCQL-SA-25-12M (25mm pipe x 1/2" NPT male)
- XCQL-SA-25-16M (25mm pipe x 5/8" NPT male)
- XCQL-SA-32-16M (32mm pipe x 5/8" NPT male)
- XCQL-SA-32-24M (32mm pipe x 1" NPT male)
- XCQL-SA-40-24M (40mm pipe x 1" NPT male)
Check out and add to cart process
- Choose desired connectors from our drop down window
- Select desired thread and pipe size
- Select number of items requested
- Add to cart and continue shopping or check out
- All Quick Lock Product Line is No Cancel/No Returns
