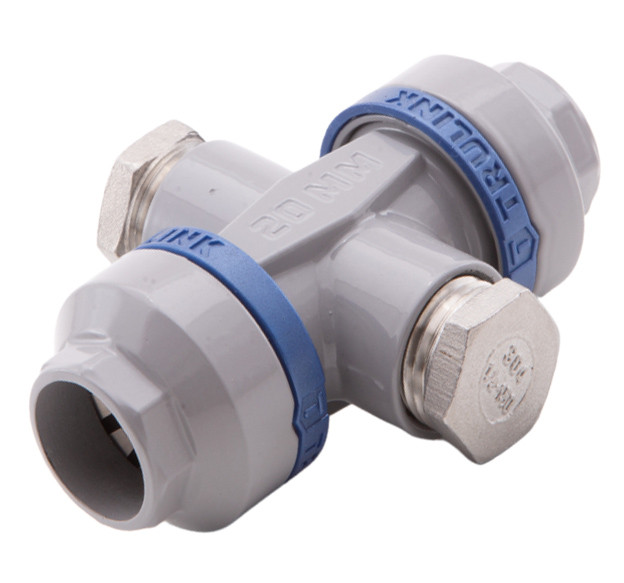

Product Description
The Champion Quick Lock XCQL-UC series – versatile straight union connectors with port for joining two sections of Champion aluminum air pipes while adding a female NPT port for gauges, drains, or accessories in shops and garages. Double push-to-connect ends plus a 1/4" female NPT port allow tool-free, leak-free splicing of pipes from 20mm (3/4") to 50mm (2") for compressed air systems. Rated at 300 PSI and -4°F to 300°F, with power-coated aluminum for corrosion resistance and FDA compliance where needed. Reusable design makes expansions and repairs simple – perfect for custom air line setups in auto service, industrial, and fabrication environments.
Key Features & Compatibility:
- Straight union with port: double push-to-connect x 1/4" female NPT
- Aluminum construction, 300 PSI pressure rating
- Temperature range: -4°F to 300°F
- Reusable & easy reconfiguration
- Power-coated for durability & corrosion resistance
- FDA compliant options available
- Fits Champion Quick Lock aluminum piping
Available sizes:
- XCQL-UC-20-08F (20mm pipe x 1/4" NPT female)
- XCQL-UC-25-08F (25mm pipe x 1/4" NPT female)
- XCQL-UC-32-08F (32mm pipe x 1/4" NPT female)
- XCQL-UC-40-08F (40mm pipe x 1/4" NPT female)
- XCQL-UC-50-08F (50mm pipe x 1/4" NPT female)
Check out and add to cart process
- Choose deisired connectors from our drop down window
- Select desired thread and pipe size
- Select number of items requested
- Add to cart and continue shopping or check out
- NOTE: $75.00 Minimum for Champion Products
- All Quick Lock Product Line is No Cancel/No Returns
