Product Description

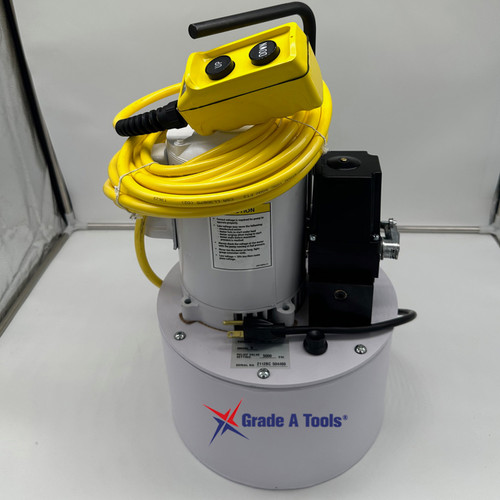

This is the original pump used for the chief EZ Liner II Frame machines, works with the 5 Ton towers that are on your Chief EZ liner II Frame machine. This pump will fit directly into your frame machine pedestal and includes the original steel shaved reservoir tank. This is the same OEM pump that chief used in the original EZ liner II and is manufactured in the USA, this is the same pump as the original Chief pump # 690515. The Up & Down switch is the same as the original and is plug and play and is included with purchase.
- Pump is the original OEM pump used by chief part # 690515
- Works on Chief Ez Liner II frame machine
- Work on Chief Classic frame machine
- Pump is equipped with the original steel shaved reservoir tank
- Pump is manufactured by Power Team / SPX
- 5 Ton pulling power

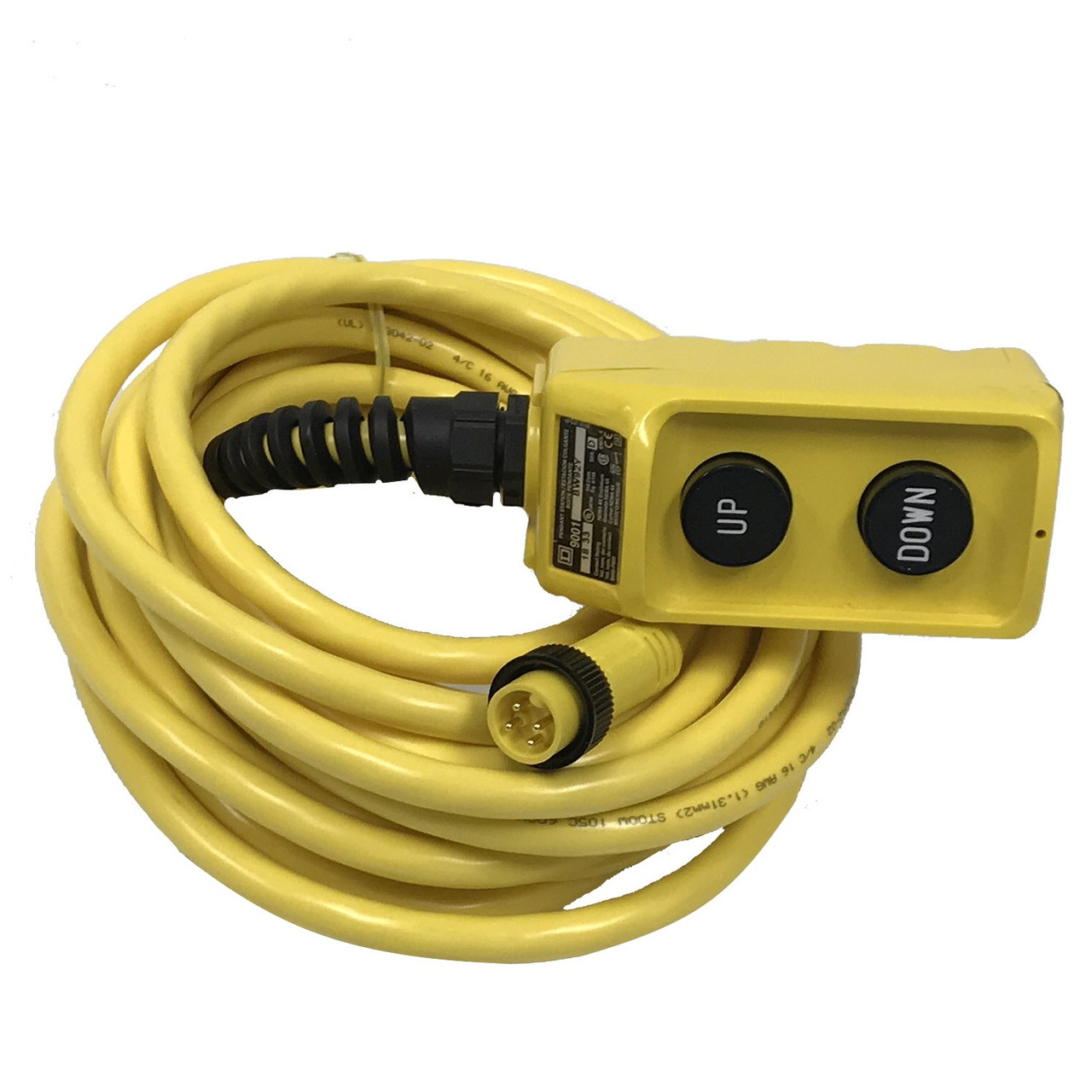

- Includes Up & Down switch (plug and play)

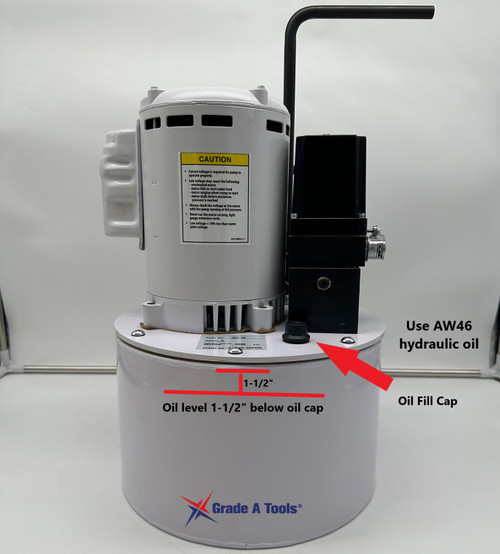

- Oil does not ship with this pump (use AW46 Hydraulic oil from your local vendor)
- See all photos for more information
- Free Shipping
NOTE # 1. This pump will fit into your pedestal with no modifications needed
NOTE # 2. If you have questions call be purchasing
NOTE # 3. This pump will NOT work on LARGE S-21 Frame machines
NOTE # 4. NOTE: Do not use tractor hydraulic oil
Please contact us if you have any question prior to purchase
Other notes
This is the original chief EZ liner II frame machine pump part # 690515
Specifications
- 1/2 HP for single acting Cylinders
- 110/115V - 50/60 HZ
- 10A - 1 Phase
- Max 3450 rpm - with Solenoid
- 2 Gallon Welded & shaved side reservoir or (462in3)
- Shipping weight 72 lbs
- Max 10,000 psi
- AW-46 Hydraulic Oil
UPC: 3503634122126
