Product Description

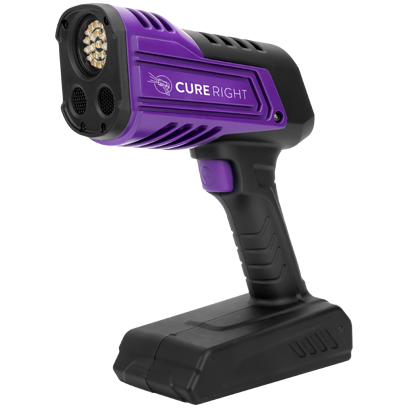

The CureRIGHT DF-CR004 rechargeable UV Curing Gun utilizes the latest ultra high flux UV-A LED technology and is focused through custom designed optics to provide a more efficient, faster, and safer cure light. Use for all automotive repair and industrial curing needs utilizing ultraviolet light curable fillers, base coats, primers, top coats, and clear coatings. Up to 1 second curing time for some UV primers. Powerful irradiance with maximum UV-A intensity of 55,000 μW/cm² at 8 inches (20cm). Successfully tested on UV paint products from all major paint manufacturers. Only emits UV-A, and does not emit UV-B or UV-C. Efficient active built-in cooling system keeps the light cooler to maintain optimum light output during extended use. Efficient ultrasonic range finder function. Wall-Mounted charging station provides more convenient recharging process.
APPLICATION
Use for all automotive repair and industrial curing needs utilizing ultraviolet light curable fillers, base coats, primers, top coats, and clear coatings.
FEATURE & BENEFITS
• FAST CURING TIMES - Up to 1 second curing time for some UV primers.
• POWERFUL IRRADIANCE - maximum UV-A intensity of 55,000 μW/cm² at 8 inches (20cm).
• ACTIVE COOLING SYSTEM- Keeps the light cooler to maintain optimum light output during extended use.
• ULTRA RANGE FINDER - Efficient ultrasonic range finder and timer functions.
• LCD CONTROL CENTER - Easily set curing times and irradiance.
SPECIFICATIONS:
Light Source: High Power UV LED
LED Light Wattage: 66 Watts
LED Lifetime: 40,000 Hours
LED Wavelength: λp= 395 ±5 nm
Battery Type: Li-ion 11.1V - 5200mAh, 57.72Wh
Battery Charging Time: 3 Hours
Battery Charging Info: AC 100 - 240V ~ 15V 1.5A
Running Time: 90 Minutes in Total (Max 10 minutes each use)
Weight: 2 Lbs (0.9 Kg)
Dimensions: 6-1/4”x 8-3/4“x 3” (159 x 223 x 77mm)
Housing Material: Aluminum + Polyamide
Cooling System: Thermal Management System enhanced with fan
Storage Temperature: -4°F ~ 122°F (-20° C ~ +50° C)
TECHNICAL SPECIFICATIONS:
Ultrasonic Range Finder: Max 160” (400cm)
Temperature Control Function: Working ≤ 194° F (90° C)
Safety Protection Function: Double click ≤ 100ms
Curing Distance: 2” (50mm) to 8” (200mm)
Curing Zone Dimensions: 4” x 4” (100mm x 100mm) to 8” x 8” (200mm x 200mm )
Curing Time: 5~12 seconds* to 30~80 seconds*
Average Irradiance: 135 mW/cm2 to 36 mW/cm2
Peak Irradiance: 200 mW/cm2 to 55 mW/cm2
