Description

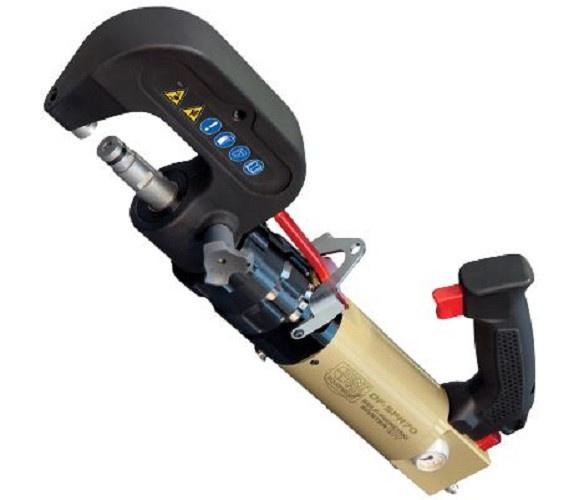

The DentFix DF-SPR70 Self-Piercing Riveter 10T is an automatic air-powered tool designed for common riveting tasks in modern body shops, including self-piercing rivets (SPR) and standard flow-form rivets. It's part of most OEM-recommended methods for joining aluminum panels up to 6.5mm thick (with included rivets) or 8-9mm with optional 11mm rivets, using a cold forming technique that requires no heat or pre-drilled holes. The 10T pressure and punching die allow installation through boron steel for flow-form rivets. Adjustable actuator speed and rivet pressure prevent panel distortion. Ideal for collision repair and aluminum vehicle work like Ford F-150.
Key Features & Compatibility:
- 10-ton force for heavy-duty installs
- Adjustable pressure/speed controls for accuracy
- Cold forming – no heat or pre-drilled holes
- Rivets aluminum up to 6.5mm (8-9mm optional)
- Punches boron steel for flow-form rivets
- Arm swivels 360° for access
- Ergonomic handle with magnetic die
- Air-powered: 90-120 PSI, 1/4" inlet
Kit Includes:
- Matrices: 3mm SPR, 5mm SPR, Extracting, Flow Form, 6.5mm Hole Punch
- 2 matrix keys
- Center punch
- Strap
- HR110 arm
- Sample box of steel punch rivets
- Carrying case
