Product Description

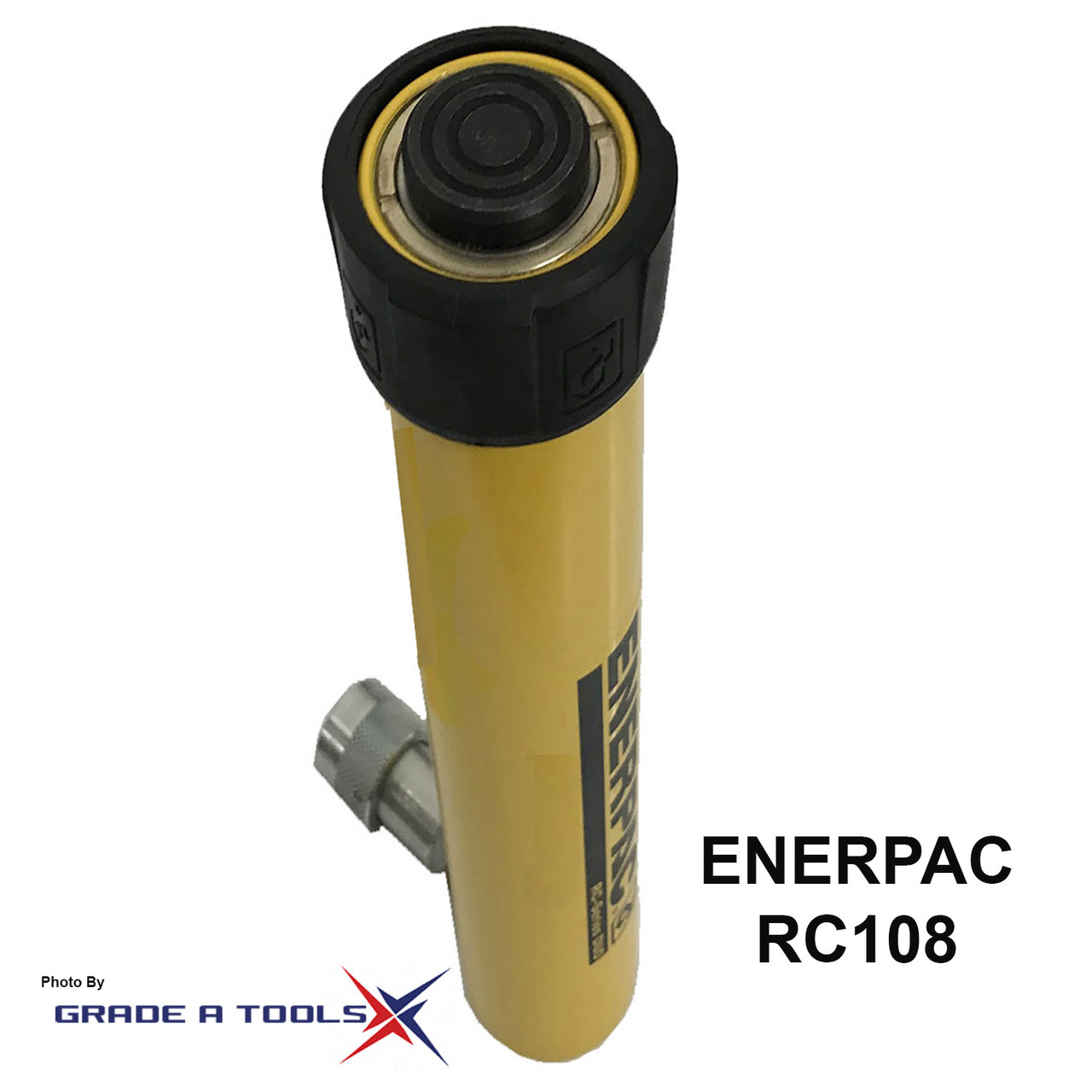

Enerpac RC-108 Hydraulic Ram - 10 ton 8" Stroke
This is an OEM Hydraulic Ram
- General Purpose hydraulic ram
- Maximum working pressure of 10,000 psi
- Single Acting
Collapsed Height (in)11.75
Extended Height (in)19.75
Outside Diameter (in)2.25
Cylinder Bore Diameter (in)1.69
Plunger Diameter (in)1.5
Base to Advance Port (in)0.75
Saddle Diameter (in)1.38
Saddle Protrusion from Plunger (in)0.25
Plunger Internal Thread (in)1" - 8
Plunger Thread Length (in)0.75
Base Mounting Holes Bolt Circle (in)1.56
Base Mounting Holes Thread 5/16"- 18
Collar Thread (in)2 1/4" - 14
Collar Thread Length (in)1.06
Base Mounting Holes Thread Depth (in)0.5
Maximum Operating Pressure (psi)10,000
Capacity Class (tonnage)10
Maximum Cylinder Capacity Advance (tons)11.2
Stroke (in)8
Return Type Single-Acting, Spring
Return Plunger Type: Solid Material Steel
Cylinder Effective Area Advance (in2)2.24
Oil Capacity Advance (in3)17.89
Weight (lbs)12
