EZ Roller Spinner Heavy Duty Mobility Package - (4) 22" & 25" wheels

This is our Heavy Duty EZ Roller Spinner 4 Wheel mobility package. This kit includes (1) 22”-wheel 4/5 lug pattern, (1) 22”-wheel 5/6 lug pattern, (1) 25”-wheel 4/5 lug pattern, (1) 25”-wheel 5/6 lug patter and a mobility cart with spare parts in a case. The Spinner wheel features an easy “install and go” and the mobile cart takes them to where you work. These heavy-duty spinner wheels come pre-assembled with our patented heavy-duty bearing system the wheels are designed for EV and heady duty vehicles and is recommend for vehicles over 5,500 lbs. for the best roll resistance. The spinner option gives you the ability to push or pull AWD, FWD or RWD vehicles that have no power or are stuck in park into a service bay. Our unique and patent pending, light weight, 2 & 1 use wheels, are used to move vehicles around in a shop or storage lot at speeds up to 5 mph or be pushed at 2 mph into a service bay. We offer a heavy-duty steel center hub to prevent over torqueing. Our easy on and off wheel does not require special spacers, bolts, nuts, or washers. simply install and go in minutes. This is a simple solution for vehicle mobility and helps you maintain your cycle time and limits production down time. (Wheel should never be used for street or highway driving).

This mobile work station includes the following:

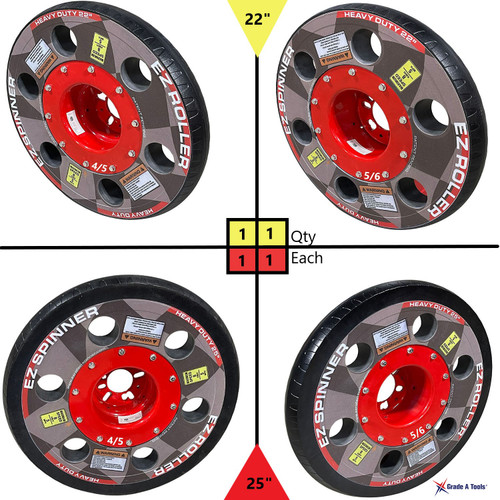

• (1) 22"  EZ Roller Spinner with 4/5 lug pattern
• (1) 22"  EZ Roller Spinner with 5/6 lug pattern
• (1) 25"  EZ Roller Spinner with 4/5 lug pattern
• (1) 25"  EZ Roller Spinner with 5/6 lug pattern

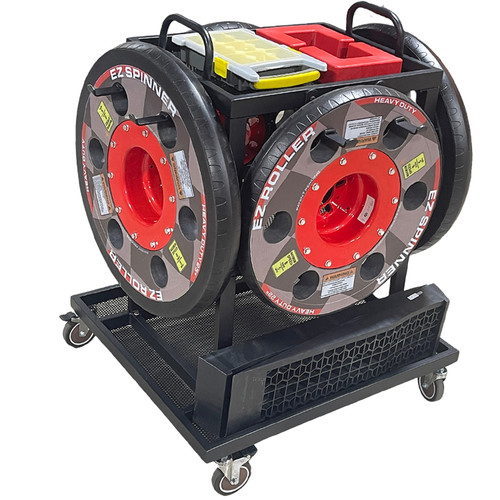

• (1) Mobility cart holds up to 8 wheels
• (2) Wheel Chocks
• (1) Set of Ramps
• Spare parts and bolt organizer & 12 Spare wedge nuts
• Spinner wheels comes with pre-loaded wedge nuts
• Assembly required for the Cart only
• Wheels come fully assembled
• Also Available in 8-Wheel package (Here)

Note: Custom cart configrations can be made to your specifications contact for pricing

Each Wheel Features

• Heavy duty wheels equipped with pre-installed roller bearing (see photos)
• Each heavy-duty wheel has a 3,300 lbs. rating
• 2 in 1 Roller wheel transforms into a spinner and stationary Wheel by removing the bolts holding the center.
• 10 Wedge Nuts - serviceable and easy to install
• Super strong spinner ring allows for spinner functionality
• Easy “install and go” feature
• Installation uses OEM bolts and nuts, no need to stock special parts
• Easy to move vehicles without wheels from outside lot into shop
• Lightweight thermoplastic material, makes it easy to pick up and install
• The heavy duty 10 mm steel center hub was designed to handle high impact wrenches, thus preventing over-torqueing
• Wheels have built in spacer, clears all brake calipers.
• 22" wheels are not recommended for use with vehicles under 6" Clearance
• 25" Wheels are recommended for use on vehicles under 6" Under body clearance
• Works in conjunction with the vehicle’s braking system
• EZ Roller wheel works independent of the braking system when using in the Spinner mode
• All wheels are limited to 5 mph and in shop or storage lot and 2 mph when pushing the vehicle while in Spinner mode.
• Ok to use electric pushers at low speed
• Wheel are not for road use
• 2-year warranty on Roller, 1-year warranty on Spinner ring.

Click Here to See all EZ-Roller Spinner products

Additional FEATURES AND BENEFITS

Tire: The thermoplastic elastomer (TPE) tire offers a unique combination of high strength, flexibility, temperature resistance and processing characteristics. Bolts on Center- Star head made from high grade steel, easy to remove with wrench to change Roller to Spinner Wheel.
