Description

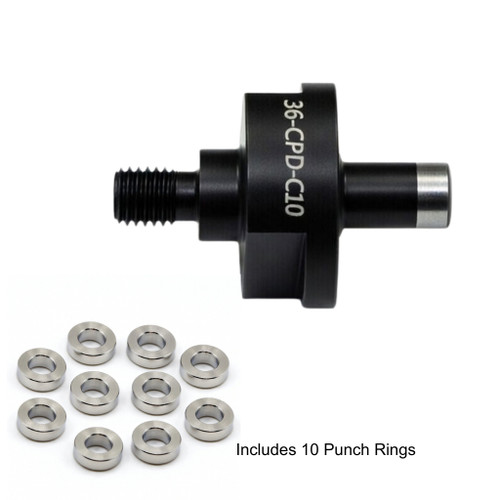

The Flow Form Rivet Calibration Punch for PR-5, PR-8 & SPR-12 GAT-36-CPD-C10 is the male punch die for creating precise, consistent holes when installing flow form rivets on ProSpot PR-5, PR-8 (including PR-8D), and SPR-12 self-piercing rivet guns. Used with compatible female dies (like GAT-36-C11-3MM) and jam rings (GAT-36-CRC10), it punches accurate sizes from 1/4" to 5/16" to ensure proper rivet fit and strong bonds on aluminum and steel panels. Essential for collision shops performing high-quality flow form repairs.
Key Features & Compatibility:
- Male calibration punch die for exact hole sizing in flow form riveting
- Produces uniform 1/4" to 5/16" holes for ideal rivet preparation
- Durable build for repeated use in busy shops
- Pairs with GAT-36-CRC10 calibration punch rings and female dies
- Compatible with ProSpot PR-5, PR-8, PR-8D, and SPR-12 rivet guns
- Non-OEM replacement comparable to ProSpot PRR-C10
Included with Your Purchase:
- (1) Flow Form Calibration Punch Die (GAT-36-CPD-C10)
- (10) Bonus of 10 Calibration punch rings inlcuded
Perfect for:
- Preparing accurate holes for flow form rivets on aluminum panels
- Collision shops using PR-5, PR-8, or SPR-12 guns for precise repairs
- Ensuring strong, consistent rivet bonds in auto body work
- 100% satisfaction Guarantee
Rivet Guide/Breakdown (Zoom in PDF for better quality)
Printable Rivet Die guide 1
Printable Rivet Die Guide 2
If you need Calibration Punch rings only ( See part # GAT-36-CRC10)
NOTE: SPR Rivet dies are sometimes referred to as Mandrels
