Product Description

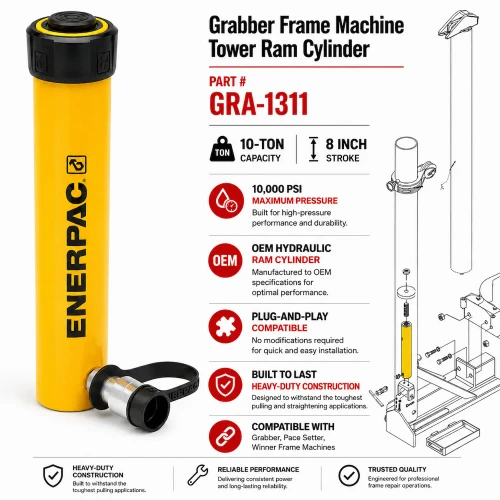

Grabber Frame Machine Tower Ram
This is an OEM Grabber Hydraulic Ram used by the manufacturer
- 10 Ton Pulling Tower Rams for both the Winner, Pace setter frame machines
- 10 Ton Lift Ram for both the Winner and PaceSetter frame machines
- See Manuals below for additional information
- Part # is the Grabber part # for easy Identification
Note: Please verify the ram Part # prior to placing order If you have Questions Please call
Or See Manuals below for verification
See Winner Parts Manual Click Here
See Pacesetter Parts Manual click Here
Collapsed Height A (in)11.75
Extended Height B (in)19.75
Outside Diameter D (in)2.25
Cylinder Bore Diameter E (in)1.69
Plunger Diameter F (in)1.5
Base to Advance Port H (in)0.75
Saddle Diameter J (in)1.38
Saddle Protrusion from Plunger K (in)0.25
Plunger Internal Thread O (in)1" - 8
Plunger Thread Length P (in)0.75
Base Mounting Holes Bolt Circle U (in)1.56
Base Mounting Holes Thread V5/16"- 18
Collar Thread W (in)2 1/4" - 14
Collar Thread Length X (in)1.06
Base Mounting Holes Thread Depth Z (in)0.5
Maximum Operating Pressure (psi)10,000
Capacity Class (tonnage)10
Maximum Cylinder Capacity Advance (tons)11.2
Stroke (in)8
Collapsed Height A (in)11.75
Extended Height B (in)19.75
Return Type Single-Acting, Spring
Return Plunger Type: SolidMaterialSteel
Cylinder Effective Area Advance (in2)2.24
Oil Capacity Advance (in3)17.89
Weight (lbs)12
