Product Description

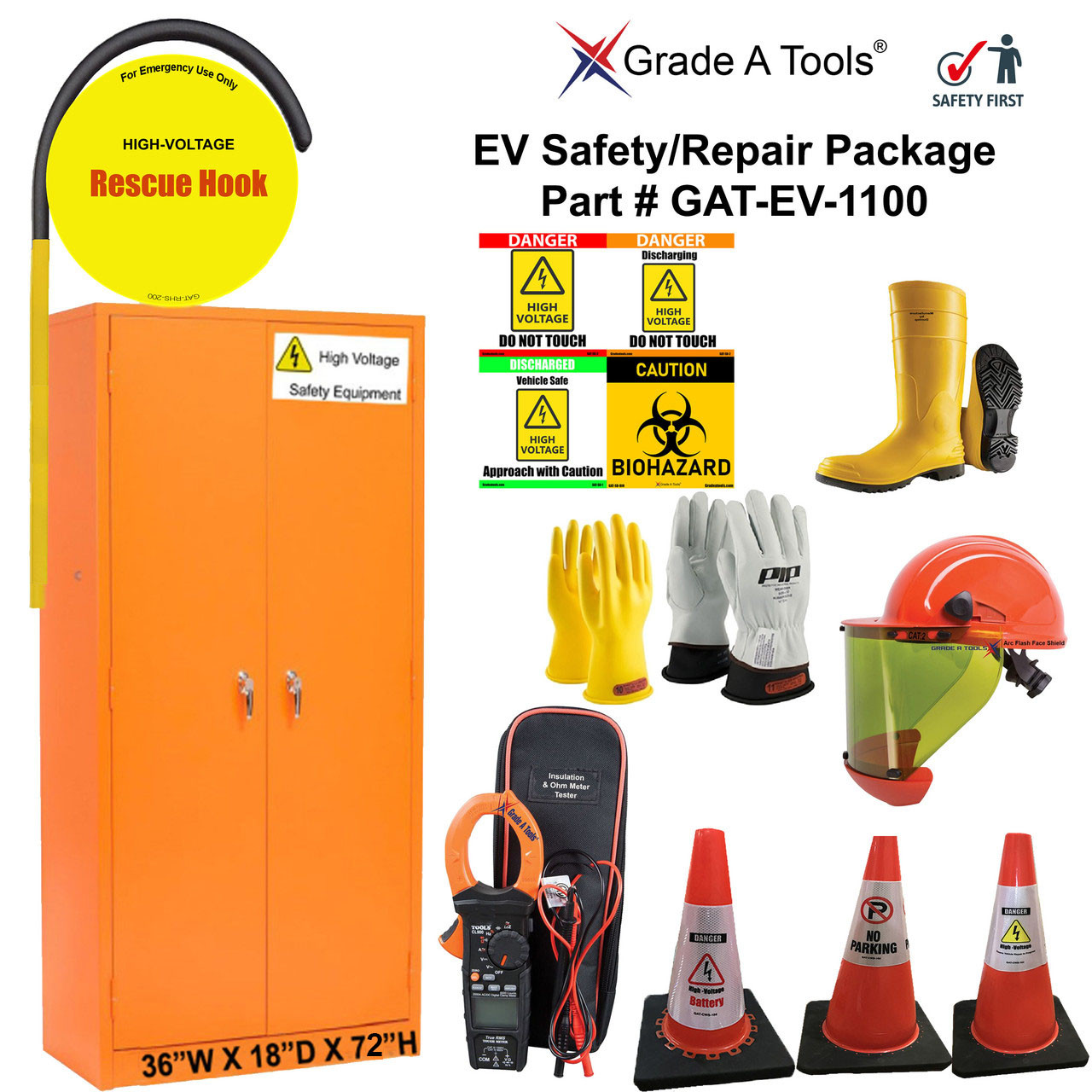

GAT-EV1100 All-Inclusive Electric Vehicle Safety Repair Cabinet – the complete, ready-to-deploy high-voltage safety station for collision centers servicing Tesla, Rivian, GM Ultium, Ford Lightning, and all EV/hybrid vehicles. This professional 72"H × 36"W × 18"D bright orange cabinet keeps every required safety item organized and instantly accessible during battery disconnects, structural repairs, and high-voltage operations.
Includes:
- Cabinet 72"H X 36"w X 18"D
- Insulated Rescue Hook w/ Sign
- Rubber Electrical Insulating Gloves Kit, Class 0
- Steel Toe Dialectic Boots
- Car Safety Hat Package (1 of each)
- OHM & Insulation Meter - Electric vehicle (EV)
- Arc Flash Face Shield
- 12 Pack Static Cling Decal Kit
- Safety Cone Kit (5 Cones, 10 Collars)

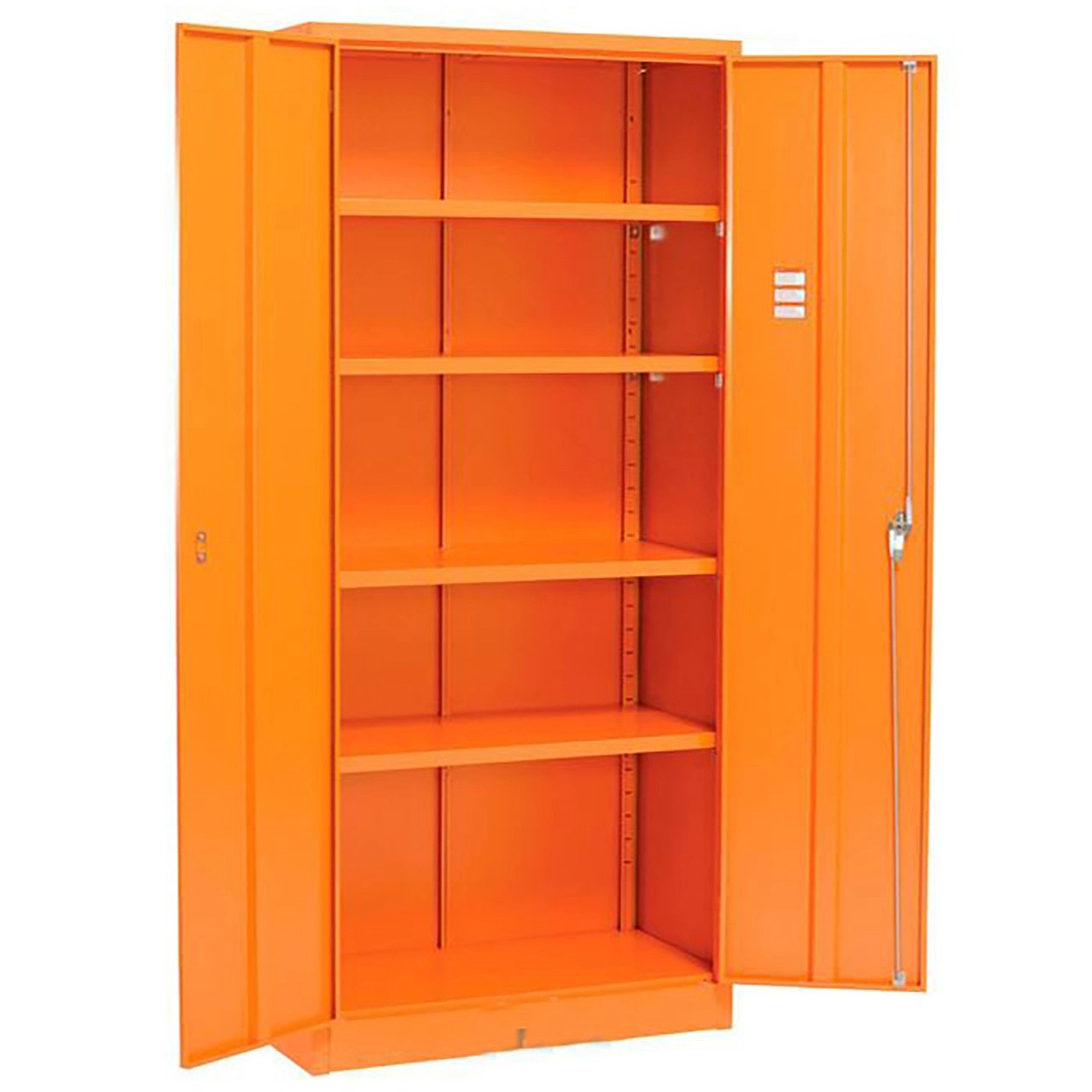

Cabinet:
- Securable bright orange for high visibility
- 5 Compartment
- 4 Adjustable shelves
- Bi-Fold doors
- 22 Gauge Steel
- Key Door with 2 keys
- Requires assembly (Easy assembly rating)
- Full body is steel constructed
- Includes Cabinet Decals
- Includes 6 adhesive decal clips
- Some items ship separately
Rescue Hook:
Insulated Rescue Hook For Electric Vehicle Repairs, compact 4-1/2 foot length and rated at 87,000 volts and calibrated to meet ASTM-F711 specifications. manufactured with a 1-1/4" fiberglass handle with a 18" coated and heat treated metal hook. Package includes 18" sign and 2 mounting brackets. Tool is designed to remove an injured worker from a dangerous work area or situation and is designed to work in a confined spaces. 4-1/2' (4 foot six inches) Rescue Hook 1-1/4"
- Meets ASTM-F711 Specifications
- Includes 18" Wall Sign (6mm Corrugated Plastic)
- Includes 2 Wall Mount Brackets
- Rated and tested 85,000 Volts
- Hook can be inspected and re-certified.
- Total Length 4-1/2' (4 foot six inches)
Gloves:
Novax Rubber Insulating Glove Kit , Class 0, 11 Inches comes with one pair of gloves and one pair goat skin Protectors.
- Meet ANSI/ASTM D120 standard and NFPA 70E for use around electrical hazards and arc flash protection.
- Contoured shape reduces hand fatigue
- Natural rubber construction
- Silicone free
- Kit Includes 1 pair ESP Gloves, 1 pair Goatskin Protectors
- Includes 11 in Nylon Glove Bag (148-2136).
- Class "0"
- ANSI: Class "E"
- Colors may vary based on availability.

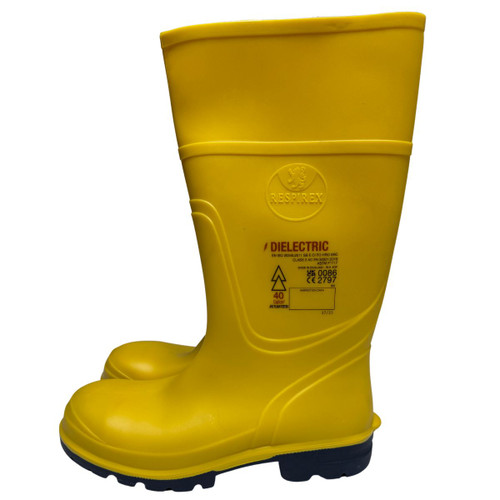

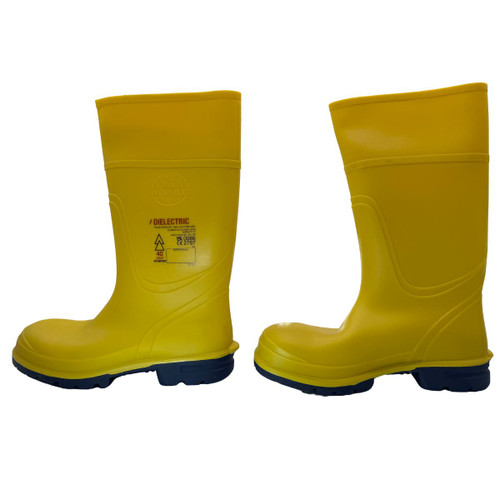

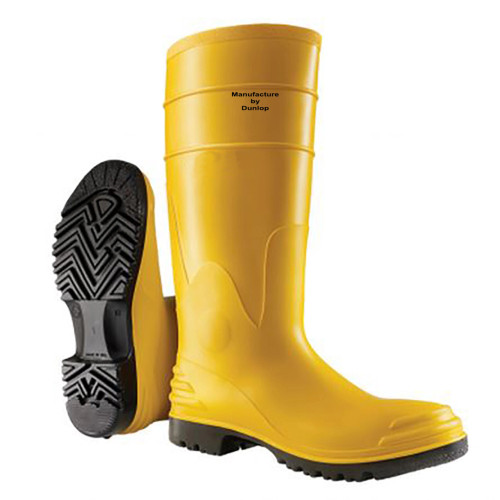

Boots:
These Dielectric II Electrical Hazard Steel Toe Boot with Ultragrip are vital safety gear when repairing Electric Vehicles (EV). These boots are vital when rescuing personal from a electrical shock situation. Size 11
- Ultragrip provides dielectric protection with superior durability and slip resistance
- Upper provides EH quality protection along with a high abrasion resistance
- Steel toe complies with ASTM F2413-11,
- Will withstand 18,000 volts of AC current for 1 minute showing no leakage in excess of 1.0 mill-amperes
- Boots can be ordered in diffent sizes (Call or note size needed when ordered)
- Required OSHA safety gear when handling High voltage repairs or installation
- When Ordering over boots +2 sizes over wearer shoe size
Car Safety Hats (set of 3):
- (1) Green Hat - Discharged Approach with Caution GAT-SH-1
- (1) Orange Hat- Discharging Do Not Touch GAT-SH-2
- (1) Red Hat - DANGER High Voltage Do Not Touch GAT-SH-3
Ohm Meter:
Insulation & OHM Test Meter Combo this tool is used for the electric vehicle repairs.
- Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
- Rugged Klein ''TOUGH METER'' industrial design stands up to job-site demands; built to withstand a 6.6-Foot (2m) drop
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
- Backlit display for clear visibility in environments with low ambient lighting
- Dedicated mode for capturing Inrush Current
- Non-contact voltage tester integrated into the clamp
- Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
- Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
- Clamp measures AC and DC current
- Powers off automatically after 30 minutes of non-use to conserve battery life
- Low battery indicator and easily accessible battery compartment
- Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
- Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
EV Face-Shield:
EV - Protect Arc flash face shield with Hat - Category 2
This arc face shield is perfect for the EV (electric vehicle) repair programs and provides safety while preforming vehicle repairs. Face shield meets ANSI Z87.7 standards.
Static Cling Decals:
Static Cling Decal Package 12 Assorted Clings Electric Vehicle Window Cling Assortment Kit - 12 Total Clings
- (3) Danger High Voltage - Red
- (3) Danger Discharging - Orange
- (3) Discharged Approach With Caution - Green
- (3) BIOHAZARD warnings
Warning Decals are designed for temporary and non-adhesive labeling, Static Cling lets you place warning labels on glass and other smooth services without using adhesives. Decals are washable and re-usable.
- 4" X 4" Static Decals
- Static Decals stick to Glass, Metal, Aluminum, and other smooth surfaces
- Removable and washable
Note: This decal is use for safety purposes only and may save a life.

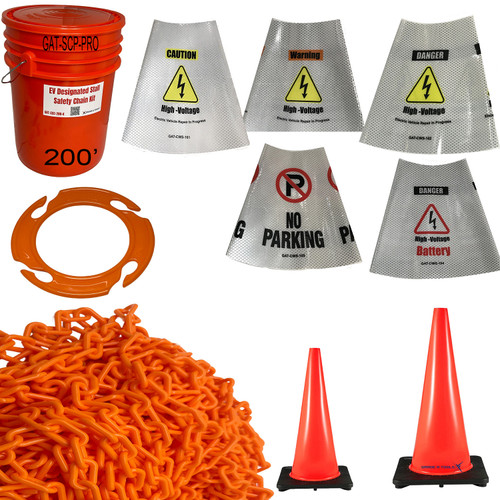

Cones:
Electric Vehicle Repair Safety Cone Package 510
This is a complete Electric Vehicle Repair Safety package. Package includes 5 Cones and 10 Message collars. Message includes caution, waning and danger and comes with 3 of the 28" and 2 of the 18" cones. This package will cover all your needs to ensure safety of personnel, non-personnel and vendors.
Package Includes:
- Premium traffic safety cones is made of high-quality PVC
- Package comes with 2 - 18" and 3 -28" Cones (5 cones total)
- Comes with 2 "Caution Electric vehicle repair in Progress" signs Part # GAT-CWS-101
- Comes with 2 "Danger Electric vehicle repair in Progress" signs Part # GAT-CWS-102
- Comes with 2 "Warning Electric vehicle repair in Progress" signs Part # GAT-CWS-103
- Comes with 2 "Danger high voltage Battery" signs Part # GAT-CWS-104
- Comes with 2 "No parking" signs Part # GAT-CWS-105
