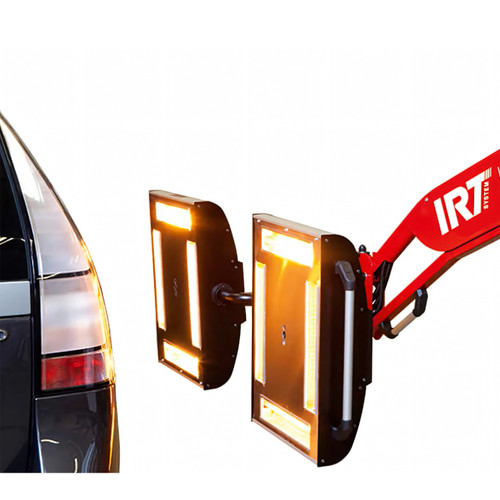

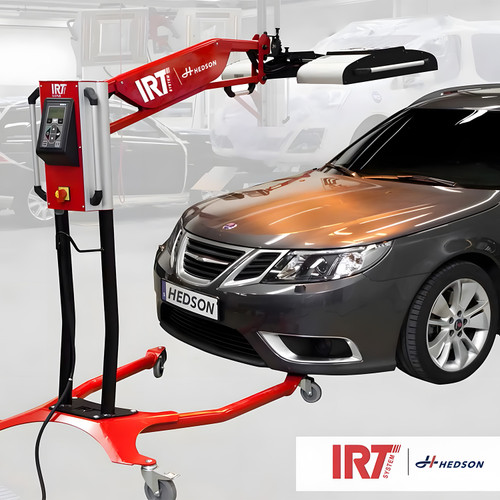

Hedson IRT 4-2 PCAuto Curing Lamp

Product Description

Hedson IRT 4-2 PcAuto Curing Lamp -

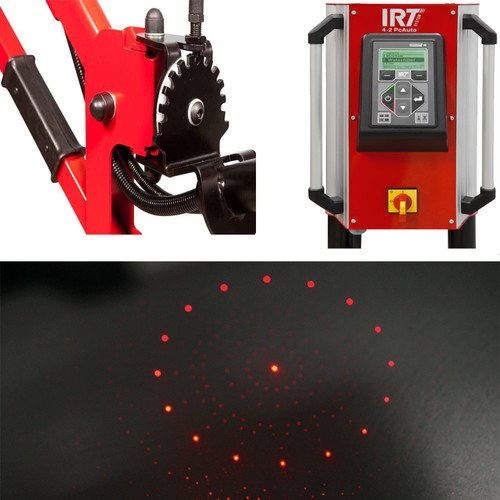

The IRT PcAuto models are equipped with advanced technology such as a temperature measurement, laser circle and digital distance sensor. 18 different languages can easily be set. The laser circle shows where the measurement of the temperature on the curing area takes place, and the ultrasound sensor measures the distance and signals when the distance is correct.The temperature is continuously measured, while the microprocessor regulates the effective output upwards or downwards in a split second for optimal curing results. As an operator, you can continuously monitor the curing process and receive information about such things as object temperature and elapsed/remaining program time.

Click Here to Download Product Sheet / Brochure Here:

Unique possibilities to position the cassettes Gold-coated FreeForm reflectors for optimal heat distribution Computerised monitoring of curing Pyrometer for exact temperature control Laser circle indicates where temperature measuring takes place Electronic distance sensor Very easy to use with 12 preset and 3 custom programs Can cure all paint materials Smart stand design Efficient particle filter on the cassettes Powerful ventilation that cools the cassette and increases lamp life Maximum cassette height 81.5" (horizontal), 100.5" mm (vertical)

Hedson IRT product Catalog

Cure area - 86.5" x 59" Minimum Distance from Panel - 600mm (24") Power Rating - 12 kW Electrical specifications - 220 Volts, 60Hz, Single Phase, 48A 220 Volts, 60Hz, Three Phase, 32A 480 Volts, 60Hz, Three Phase, 16A
