Product Description

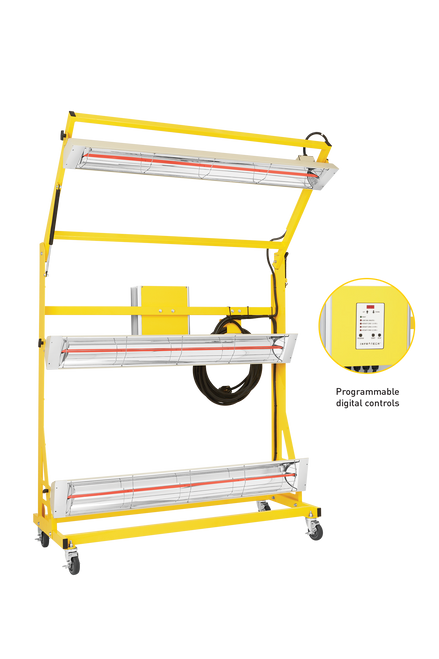

The Infratech 14-1100 S-9000-P1 is a high-intensity medium wave infrared curing system for efficient paint and primer drying in auto body repair. Delivering 9000W of medium wave infrared power over a 6' x 8' coverage area, it supports complete multiple panel repairs with three independently controlled 3000W heads adjustable from 0-100%. Operates on 240V single phase at 38A with solid-state programmable controls, electronic timer, and parabolic reflectors for uniform heat. Features narrow frame for spray booth fit, adjustable shock arm for hoods/roofs, and 50' power cord; UL-listed for safety.
Key Features & Compatibility:
- 9000W medium wave infrared output (3 x 3000W heads)
- 240V single phase, 38A operation
- 6' x 8' coverage area
- Three-zone solid-state programmable controls with timer
- Independently adjustable heads 0-100% power
- Parabolic reflectors for uniform heat
- Adjustable shock arm over 7' high
- 61" heads; 50' power cord
- UL-listed; narrow booth-compatible frame
- Compatible with 240V shop circuits
Included Items:
- S-9000-P1 curing heads (61" total)
- Adjustable stand with shock arm
- 50' power cord with twist-loc plug
- Three-zone control panel
Perfect for:
- Collision shops curing multiple panels
- Auto body techs drying hoods and roofs
- Paint booths reducing cure times 50%+
- Refinish operations minimizing energy use
