Product Description

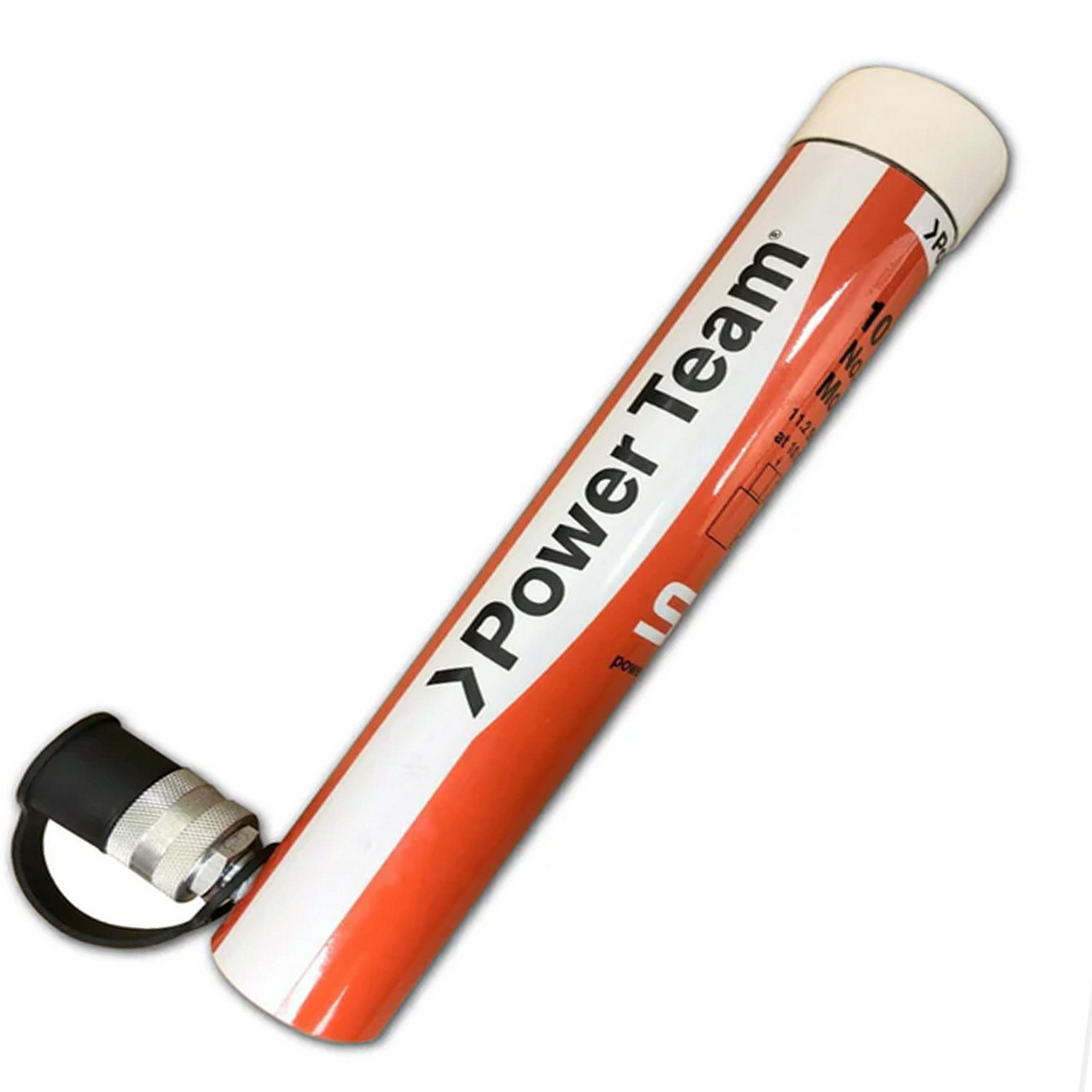

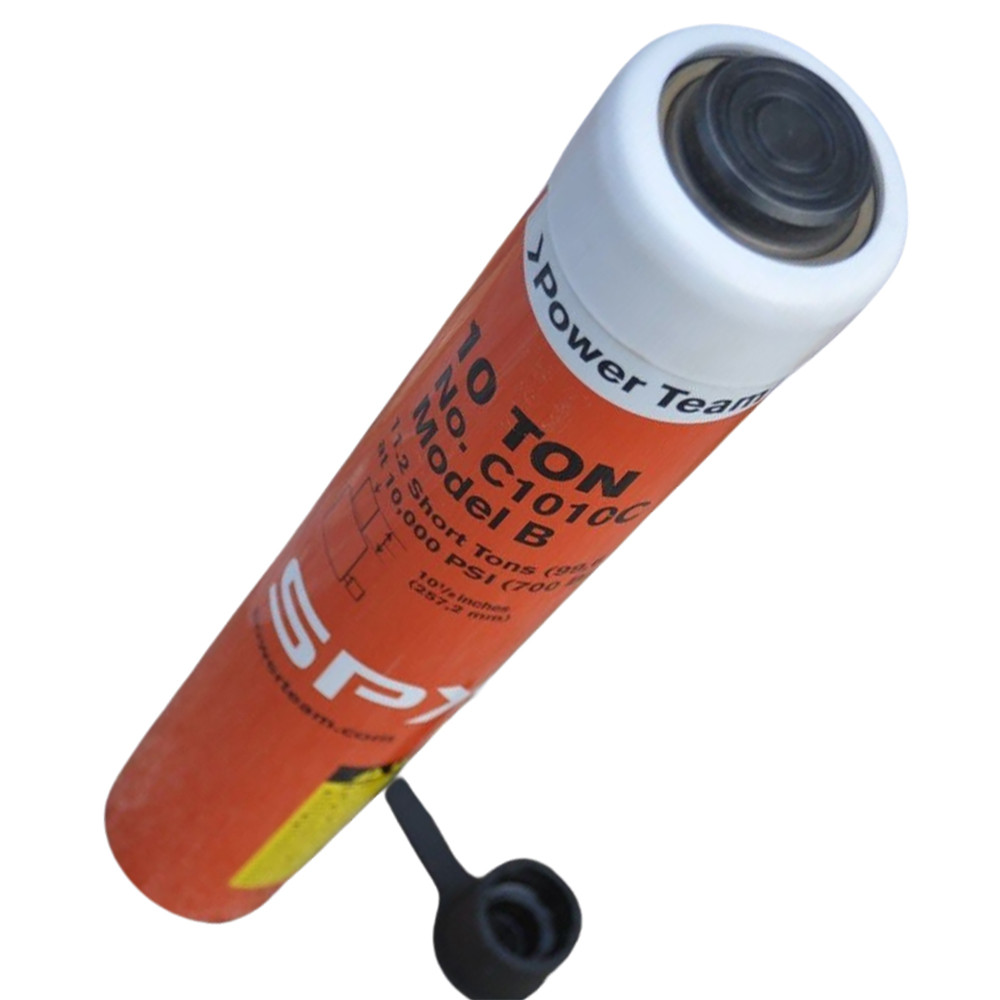

This is an OEM Power Team C1010C hydraulic ram cylinder, ram is a c- series, single acting spring return cylinder. This ram produces 10 tons of power and has a 10" stroke. Cylinder is a solid steel body and a chrome plated rod that resists wear and corrosion. This is a flat face bottom ram cylinder with 2 center back holes for mounting and has a 3/8" NPT hydraulic port.
- OEM Power Team - SPX cylinder
- 10-1/8" Stroke hydraulic ram cylinder
- Produces 10-ton power
- Rugged sturdy steel construction for industrial use
- Aluminum bronze bearing for wear reduction
- Maximum Sized spring for speed and long spring life
- Solid steel construction
- Chrome plated piston
- 3/8 NPT hydraulic coupler
- Built for long life, reliability, and exceptional quality
Manufactures Specifications
- RETRACTED HEIGHT: 20.50 in. / 520.7 mm
- EXTENDED HEIGHT: 36.50 in. / 927.1 mm
- OUTSIDE DIAMETER: 2.25 in. / 57.2 mm
- COLLAR THREAD: 2.1 in.
- PISTON COLLAR THREAD LENGTH: 1.13 in. / 28.6 mm
- BASE TO PORT: 0.75 in. / 19.1 mm
- PISTON ROD DIAMETER: 1.50 in. / 38.1 mm
- PISTON ROD INTERNAL THREAD AND DEPTH: 1-8 x 0.75 in. / 1-8 x 19.1 mm
- ROD PROTRUSION: 0.25 in. / 6.4 mm
- BORE DIAMETER: 1.69 in. / 42.8 mm
- CYLINDER CAPACITY: 10 Tons
- CYLINDER EFFECTIVE AREA: 2.24 sq. in. / 14.4 CM²
- INTERNAL PRESSURE AT CAPACITY: 8948 PSI
- OIL CAPACITY: 36.10 cu. in. / 592 CM³
- STROKE: 16.00 in. / 406.4 mm
- TONS AT 10,000 PSI: 11.20 Tons / 10.2 Metric Tons @ 700 Bar
- WEIGHT: 18.50lbs. / 8.4 kg
