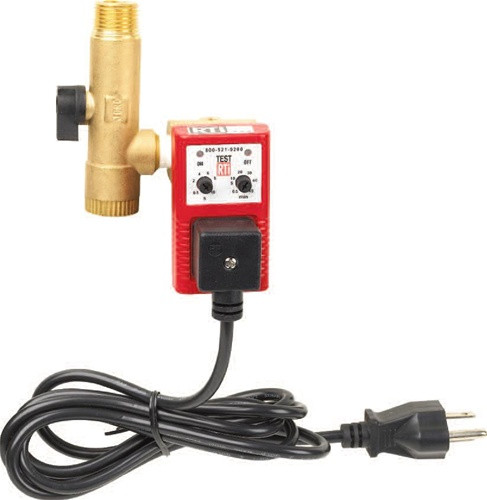

Reading Technologies Inc ED-2-4 Drain Electronic ??? 1/4"- 1/2"

Product Description

Reading Technologies Inc ED-2-4 Drain Electronic – 1/4"- 1/2"- Electronic timer drain, with indicator lights. Automatically drains water from tank. Solid brass ball valve with stainless strainer to protects valve. Reading Technologies, Inc. can solve most problems found within the compressed air industry.One of the most critical items in any air system that is often overlooked is a reliable drain mechanism on the main reservoir tank.The ED-2-4 drains automatically drain your tank as often as needed to provide water free air downstream. Use on any air reservoir tank, air/water separators, air filters, air dryers, or drip legs whenever condensed water removal is necessary. Reliance on a manually drained system often leads to water contamination of your critical air driven equipment or machinery.

Adjustable Drain Interval - 0.5 to 45 min. Adjustable Drain Span - 0.5 to 10 sec. On/Off Indicator Lights Ball Valve Strainer - Protects Valve from Heavy Contaminants. Stainless Steel Strainer Element - Easy to Remove and Clean Mounts to 1/4 ”Male or 1/2 ”NPT Female Drain Lines/Ports, in Any Position. Test Button - Allows Manual Activation

Maximum Pressure: 230 PSI MaximumTemperature: 120 °F ¼” female or ½”male NPT Inlet Port ¼”NPT Outlet Port (on valve) 115V, 60 HZ, single phase NEMA 4 rating onValve and Timer ¼”NPT BrassValve body w/ .157” orifice Supplied with 6’ Power Cord
