Product Description
SPR-12 Aluminum Self Piercing Rivet Gun / ACL-36061
Compare to Prospot PR-5
Aluminum Self Piercing Rivet Gun Kit
- Rivet Gun Designed Specifically for work on aluminum alloy vehicle bodies
- Cordless 18V Technology is Safe and easy-to-handle
- High-quality lithium-ion battery to power the high-pressure hydraulic system and the control system.
- Efficient Light weight and portable.
- Micro-computer control system monitors pressure
- Automatically retracts the ram after the rivet installed.
- Adjustable Output Pressure. 4,400 to 11,200 Force pounds (20-50KN adjustable)
- Manual reset button halts the forward movement
- Automatically retracts it to starting position.
- 360 degree rotating arms , for easy access the hard difficult spots.
Kit Includes the Following Items:
- "C" Yoke 1 1/2 " ( 35 X 55 mm)
- 1 Lithium-ion Battery (PRR-12)

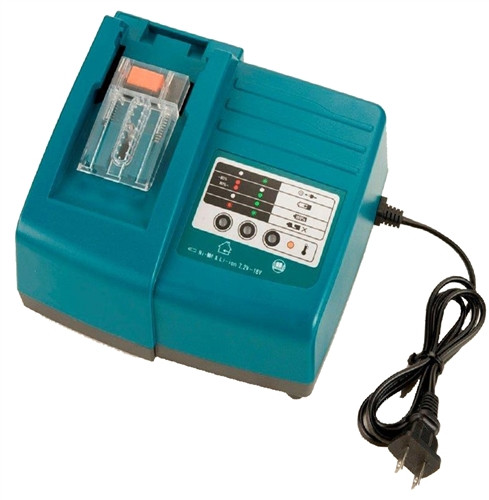

- 1 18V Battery Charger 110V wall plug (36-PRR-22)
- 1 Handy Strap
- 1 Heavy duty blow molded case
- 1 Case includes multiple rivet storage placement slots
- Gun Weight 10.8 lbs with battery and small "C" yoke
- One Year MFG Warranty
Total of 16 Punches and Dies as described below.
- 36-PRR-10 - 5mm Male Rivet Removal Die
- 36-PRR-11 - 5mm Female Rivet Removal Die
- 36-PRR-12 - 3mm Male Rivet Removal Die
- 36-PRR-13 - 3mm Female Rivet Removal Die
- 36-PRR-14 - Flush Finish Self Piercing Rivet Die X2
- 36-PRR-15 - Solid Rivet Forming Die
- 36-PRR-16 - 3mm Self Piercing Rivet Die
- 36-PRR-17 - 3mm Rivet Forming Die
- 36-SA-0400 - 5mm , Self Piercing Rivet Die
- 36-SA-0401 - 5mm Forming Die
- 36-SA-0402 - 5mm Forming Die
- GAT-SPR-399-5MM - 5mm Punch Die for SPR-12, PR-5 & ESR800
- GAT-FFD-FF10 - Head flow form side die
- GAT-FFD-FF11 - Forming side flow form die
- GAT-36CPD-C10 - Flow form punch calibration die ( Includes 10 punch rings)
- This Part# 36065 - is a 16 Piece Punch and Die Kit (SPR-12)
Shipping Note:
Free Ground Shipping. Shipping Includes High Value Freight Insurance,
Against loss and / or Damage while in transit.
Expedited Shipping not allowed due to battery.
For More Information and to get started with Certifications Visit Certify My Shop.
Rivets Sold Separately - see attached pictures for rivet sizes that will work with this rivet gun
to Repair FORD, GM, BMW, Jaguar etc,
Ford Rivet Part #'s
Ford Rivet part # W708713-S900.....5.3 X 5.0
Ford Rivet part # W708714-S900.....5.3 X 6.0
Ford Rivet part # W712218-S900.....5.3 X 6.0
Ford Rivet part # W710246-S900.....5.3 X 7.0
Ford Rivet part # W717337-S900.....5.3 X 7.5
Ford Rivet part # W708717-S900.....5.3 X 8.0
Ford Rivet part # W717186-S900.....5.3 X 8.0
Ford Rivet part # W717185-S900.....5.3 X 9.0
Ford Rivet part # W717184-S900.....5.3 X 9.0
Ford Rivet part # W717182-S900.....5.3 X 10.0
- 36-PRR-10: 5mm Male Rivet Removal Die
- 36-PRR-11: 5mm Female Rivet Removal Die
- 36-PRR-12: 3mm Male Rivet Removal Die
- 36-PRR-13: 3mm Female Rivet Removal Die
- 36-PRR-14: Flush Finish Self Piercing Rivet Die (x2)
- 36-PRR-15: Solid Rivet Forming Die
- 36-PRR-16: 3mm Self Piercing Rivet Die
- 36-PRR-17: 3mm Rivet Forming Die
- 36-SA-0400: 5mm Self Piercing Rivet Die
- 36-SA-0401: 5mm Forming Die
- 36-SA-0402: 5mm Forming Die
- GAT-SPR-399-5MM: 5mm Punch Die for SPR-12, PR-5 & ESR800
- GAT-FFD-FF10: Head flow form side die
- GAT-FFD-FF11: Forming side flow form die
- GAT-36CPD-C10: Flow form punch calibration die (Includes 10 punch rings)
Q: What is the purpose of the SPR-12 Aluminum Self Piercing Rivet Gun?
A: The SPR-12 Aluminum Self Piercing Rivet Gun is specifically designed for work on aluminum alloy vehicle bodies. It is used for the installation and removal of various types of rivets in automotive repair applications.
Q: What are the key features of the SPR-12 Aluminum Self Piercing Rivet Gun?
A: The SPR-12 Aluminum Self Piercing Rivet Gun features cordless 18V technology, making it safe and easy to handle. It is equipped with a high-quality lithium-ion battery that powers the high-pressure hydraulic system and control system. The gun is lightweight, portable, and incorporates a micro-computer control system to monitor pressure. It also has adjustable output pressure ranging from 4,400 to 11,200 force pounds (20-50KN adjustable).
Q: How does the SPR-12 Aluminum Self Piercing Rivet Gun operate?
A: The SPR-12 Aluminum Self Piercing Rivet Gun automatically retracts the ram after the rivet is installed. It has a manual reset button that halts the forward movement and automatically retracts the ram to the starting position. The gun's 360-degree rotating arms allow for easy access to hard-to-reach spots during the riveting process.
Q: What is included in the SPR-12 Aluminum Self Piercing Rivet Gun Kit?
A: The SPR-12 Aluminum Self Piercing Rivet Gun Kit includes the following items: "C" Yoke measuring 1 1/2" (35 x 55 mm), 1 lithium-ion battery (PRR-12), 1 18V battery charger with a 110V wall plug (36-PRR-22), 1 handy strap, 1 heavy-duty blow molded case with multiple rivet storage placement slots, and the gun itself weighing 10.8 lbs with the battery and small "C" yoke. The kit also comes with a one-year manufacturer's warranty.
Q: Are there any additional accessories or tools provided with the SPR-12 Aluminum Self Piercing Rivet Gun Kit?
A: Yes, the SPR-12 Aluminum Self Piercing Rivet Gun Kit includes a 16-piece punch and die kit (part# 36065), which consists of various dies such as rivet removal dies, self-piercing rivet dies, forming dies, and punch calibration dies. These accessories expand the capabilities of the rivet gun for different riveting and repair applications.
See our blog post for more info
Manufacturer website
Specifications
Capacity: 20-50KN (adjustable) Riveting time: 3 to 5 seconds
Power: Electro-hydraulic actuator Noise: 75 decibels
Charging time: about two hours Weight: 9.9 pounds (4.5 kilograms)
Continuous use: about 350 rivets
Charging source: AC 100V 50-60 Hz (auto-switching)
Working temperatures: 14 to 140 degrees Fahrenheit (-10 to 40 degrees Celsius)
