Product Description

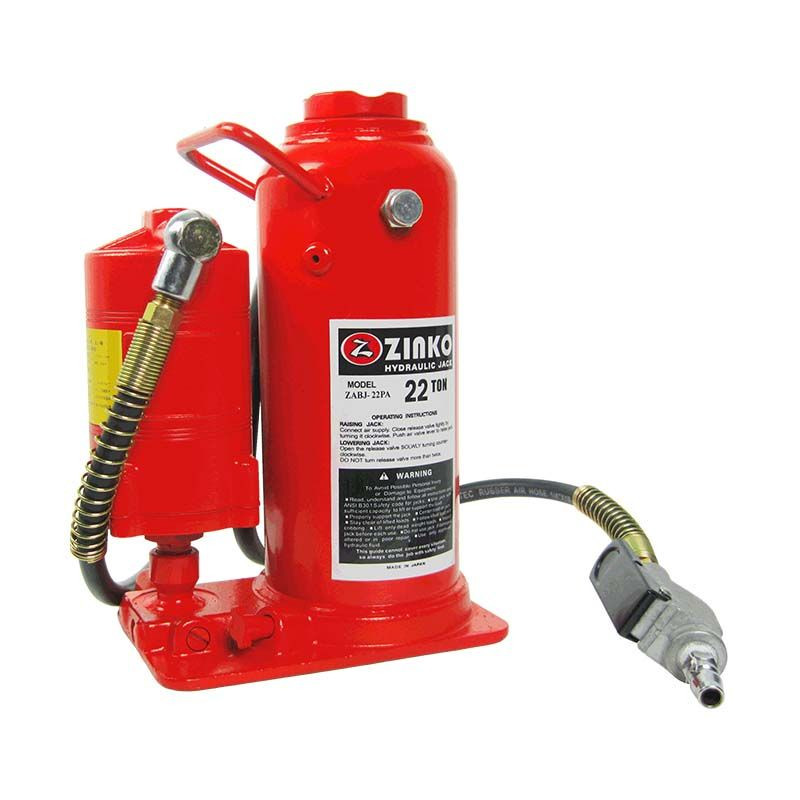

Zinko ZABJ-22PA 22 Ton Air Hydraulic Bottle Jack (Standard). Air Hydraulic Bottle Jack. 22 ton, Air Pressure Range 80-140 psi. Turn ordinary manual bottle jack power into air-hydraulic power. When connected to your shops air lines, these versatile jacks can safely deliver lifting power with the ease of a button to lift heavy beams, machines, platforms, and other objects.
Special Features:
- Welded steel construction reduces metal fatigue allowing for a long service life
- Forged steel base increases resistance to high pressure and increases durability
- Oil bypass system prevents lifting ram from overextending
- Safety valve protects hydraulic system from over-load damage
- In-line filter screen located in air valve prohibits the entrance of contamination into the air hydraulic system
- Comes with an air vent valve to stop pressure from bleeding in reservoir
Country of Origin: Japan
Capacity (Tons) | 22 |
---|---|
Lift Time by Air Supply - No Load | 50 |
Lift Time by Air Supply - Load | 195 |
Air Pressure Range (psi) | 80 - 140 |
Minimum Height (in) | 10.50 |
Ram Lift (in) | 6.00 |
Screw Extension (in) | 3.00 |
Maximum Heights (in) | 19.50 |
Weight (lbs) | 36.000000 |
Air Pressure Range 40-140 psi
