Product Description

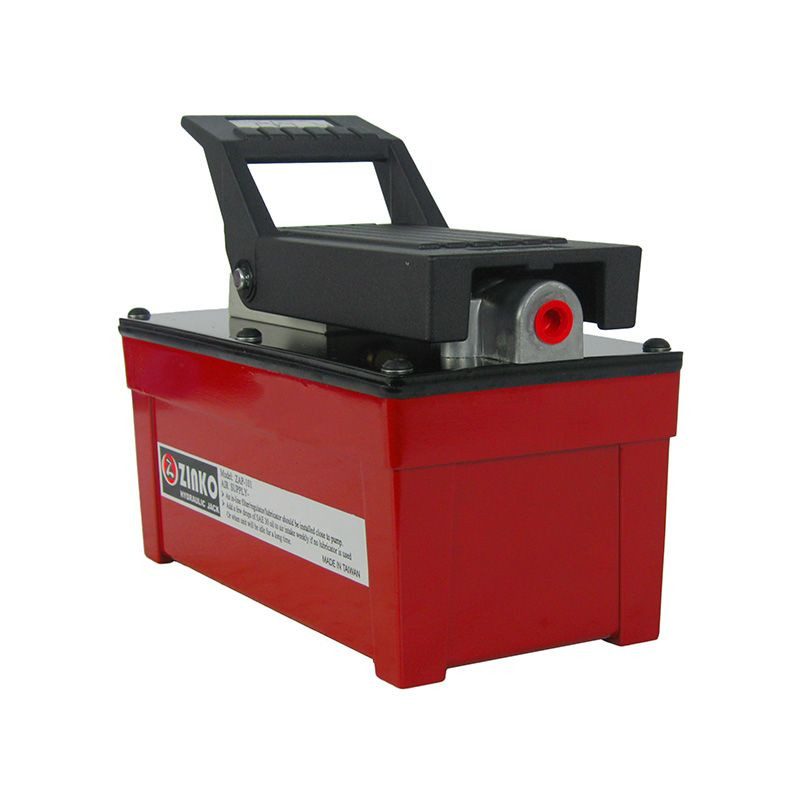

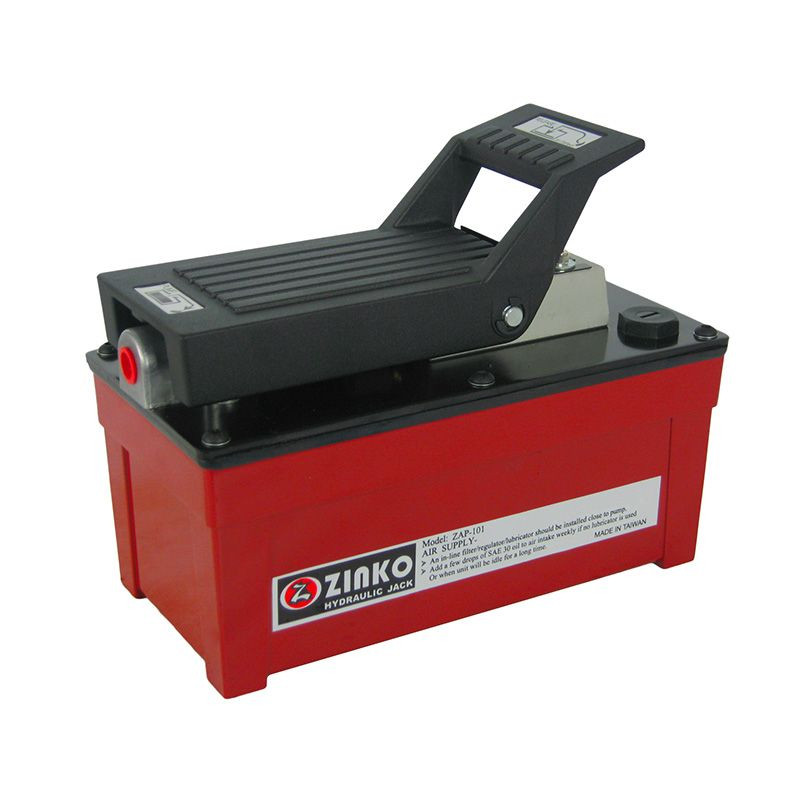

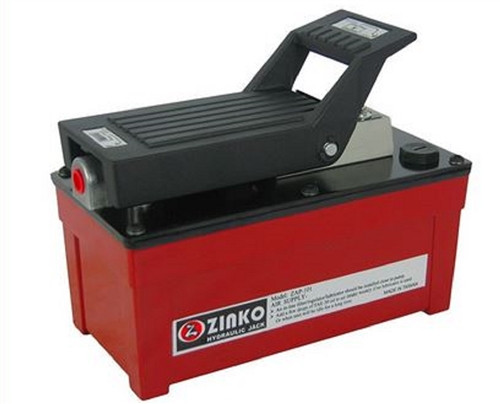

Air Hydraulic Single Speed Pump. When connected to your shop air lines, Zinko Hydraulic versatile air pumps can safely deliver up to 10,000 psi (700 bar) of hydraulic pressure to cylinders, small presses, and hydraulic tools for lifting, crimping, pipe cutting, pulling, and many other applications.
Special Features:
- This model beats the leading competitors in oil flow delivery by as much as 2 to 1, doing more work in less time.
- Two stage release mechanism for fast ram return while reducing hydraulic shock.
- Operates easily by hand or foot.
- Shipped with shipping screw for leak protection, switch to air vent before use to increase performance.
- Standard size comes with heavy-duty anodized aluminum reservoir. Aluminum reservoir with see through window, or plastic reservoir will be available upon request. These reservoirs are interchangeable.
| Oil Capacity (in³) | 98 |
|---|---|
| Pressure Rating (psi) | 10000 |
| Output Flow Rate - No Load (in³/min) | 77 |
| Output Flow Rate - Load (in³/min) | 13 |
| Air Pressure Range (psi) | 40-140 |
| Air Consumption (scfm) | 10 |
| Sound Rate (dba) | 85 |
| Port Size (NPT) | 3/8" |
| Weight (lbs) | 18.000000 |
