Product Description
Overview

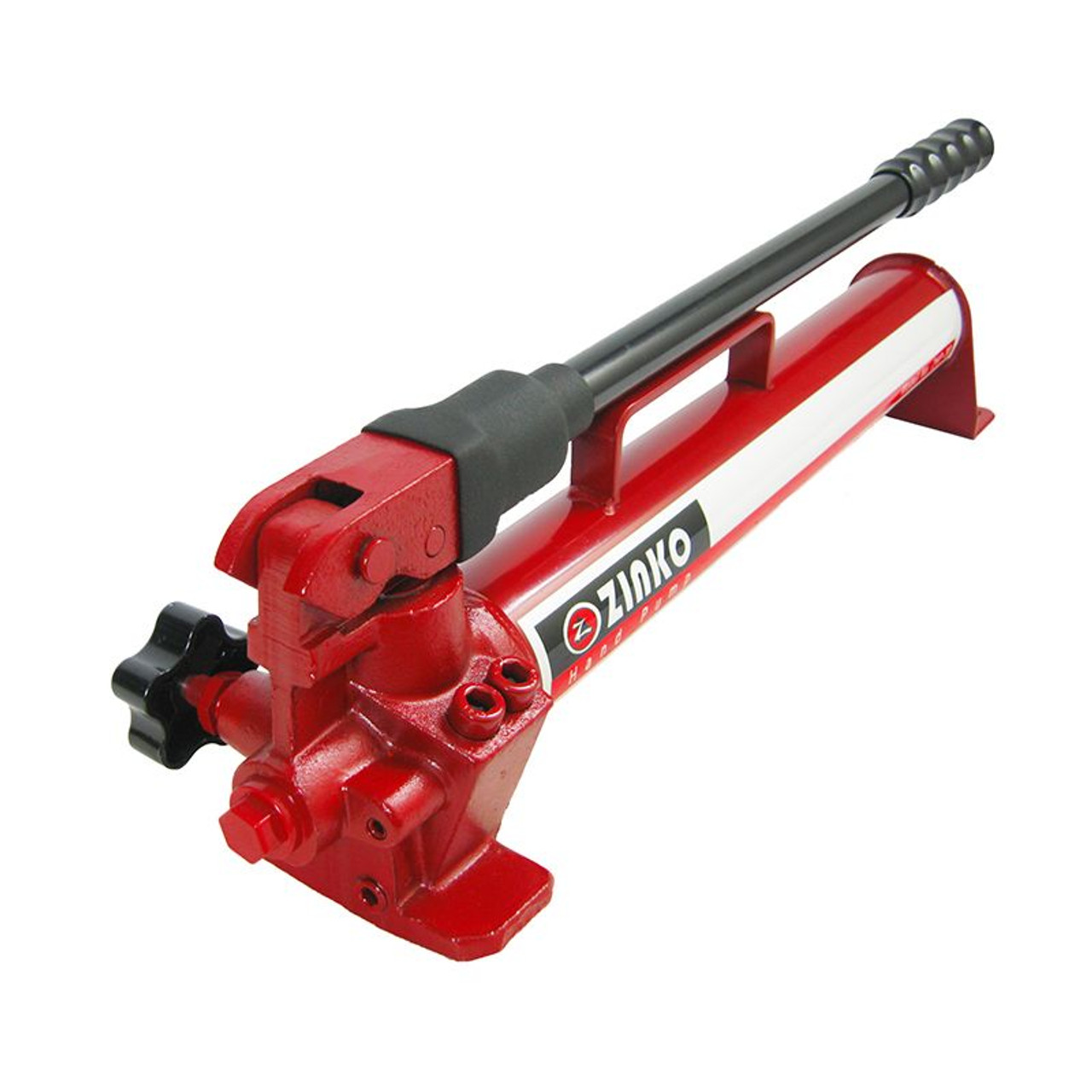

Zinko ZHP-30 30 Cubic Inches Two Speed Hand Pump - Designed to be used in many different fields with a vast selection of hydraulic components. Industrial quality, general purpose hand pump. Designed for use in shop, agricultural, automotive/truck service, and construction maintenance. Two speed operation; external adjustable relief valve for application flexibility.
Special Features:
- Two Speed pump design is faster and requires less handle strokes reducing operator fatigue.
- Works with a wide variety of rams including short, push, spreader and snap-set types.
- Extremely portable, great for on site use.
- Chrome-plated piston rods for long pump life.
- Polyurethane seals allow greater cycle counts reducing service requirements.
- Easy to mount design.
- Works with "quick-connect" couplers for fast set up.
- Heavy duty return springs provide consistent performance.
| Speed | 2 |
|---|---|
| Port Size (NPT) | 3/8" |
| Usable Oil Capacity (in³) | 30 |
| Pressure Rating - 1st Stage (psi) | 200 |
| Pressure Rating - 2nd Stage (psi) | 10000 |
| Oil Displacement Per Stroke - 1st Stage (in³) | 0.79 |
| Oil Displacement Per Stroke - 2nd Stage (in³) | 0.17 |
| Max Handle Effort (lbs) | 102 |
| Piston Stroke (in) | 0.47 |
| Weight (lbs) | 17.000000 |
