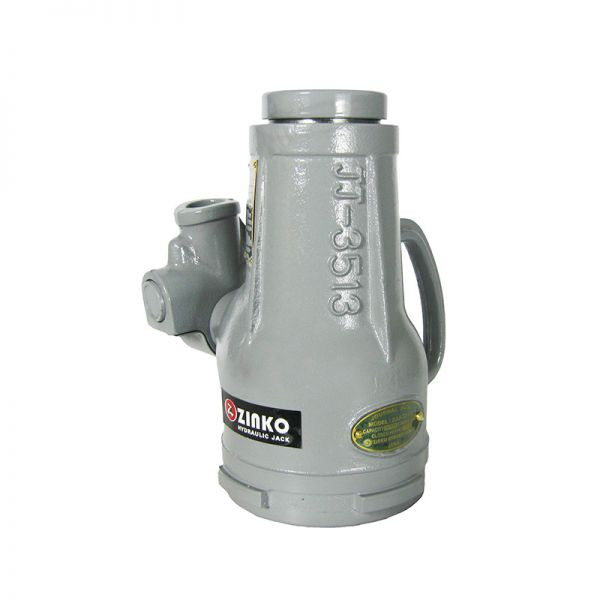

Zinko ZJJ-3513 35ton 5" Stroke Journal Mechanical Jack

Product Description

Beveled gear construction combines the precision forging pinion to provide shifted tooth form, strong and excellent interlocking.

Special Features:

• Unique construction bearing is made for longer life and smooth horizontal advance.
• Rigidly designed screw made by chrome -molybdenum steel to withstand excessive load.
• Beveled ring gear interlocks with the precision forged pinion to provide shifted tooth form for strong and excellent interlocking.
• Special ratchet handle interior design with nickel-chrome wheel and plunger enables strong rotation for an easy , smooth operation.
• Buttress threads will not creep down under load.
• Operable vertically or laterally (lateral movement requires optional traversing bed).

More Information:

• Capacity (Tons) 35
• Stroke (in) 5.11
• Operation Force (Ft. / lb.) 740
• Minimum Height (in) 11.02
• Maximum Heights (in) 14.44
• Saddle Diameter (in) 3.42
• Base Diameter (in) 5.78
• Weight (lbs) 70.000000

Country of Origin: Japan
