Product Description
Overview

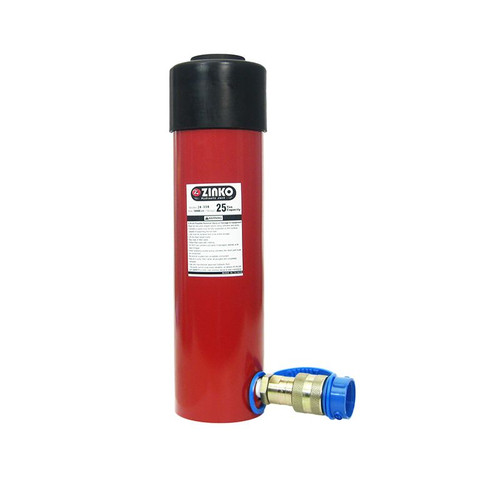

The 25 ton 8" stroke hydraulic cylinders of our store are designed for use in a variety of applications where lifting, pushing, bending or holding may be required. Ideal for use in shop, agricultural, automotive/truck service, and construction maintenance.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
More Information Capacity (Tons) 25 Stroke (in) 8.26 Oil Capacity (in³) 42.53 Cylinder Effective Area (in²) 5.15 Minimum Height (in) 12.71 Maximum Heights (in) 20.97 Outside Diameter (in) 3.34 Weight (lbs) 28.000000
Min Ht. 12.75"
