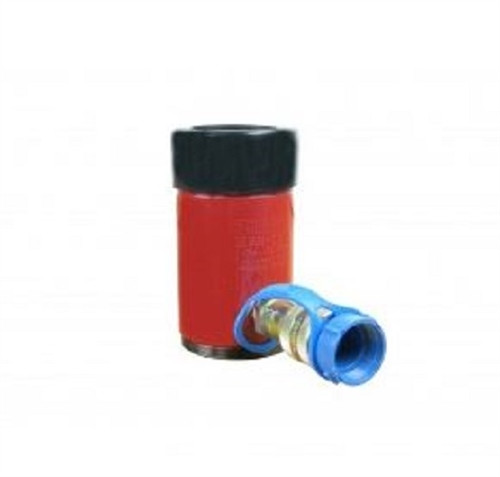

Product Description
Overview
Special Features:
- High-strength alloy steel construction.
- Chrome-plated piston rods resist wear and corrosion.
- Special bearing design helps prevent galling for long life and trouble-free performance.
- Polyurethane seals and wipers to reduce contamination, extending cylinder life.
- Hardened saddles keep top bearing and plunger from jamming.
- Saddle grooves help prevent slipping.
- Heavy-duty spring enables consistent fast plunger retraction.
- All models come with fast-flow quick-connection coupler and dust cap.
- May be used in any position.
- Hollow plunger design allows for both pull and push forces
Capacity (Tons) | 12 |
---|---|
Stroke (in) | 1.65 |
Oil Capacity (in³) | 4.57 |
Cylinder Effective Area (in²) | 2.77 |
Minimum Height (in) | 4.72 |
Maximum Heights (in) | 6.37 |
Outside Diameter (in) | 2.71 |
Weight (lbs) | 9.000000 |
Min Ht. 4.75"
