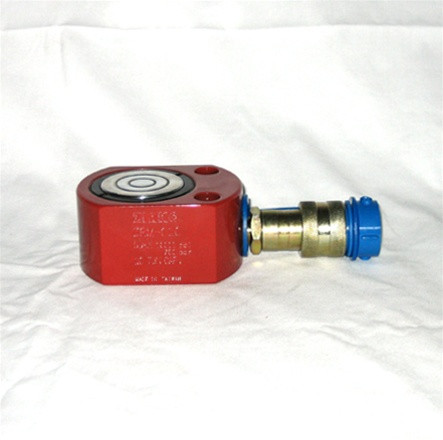

Zinko ZRM-030 30ton 0.50" Stroke Super Low Cylinder

Product Description

The Zinko ZRM-030 30-Ton Super Low Hydraulic Cylinder – heavy-duty single-acting low-profile ram designed for precision lifting, pushing, and tensioning in confined spaces across industrial shops, construction sites, and maintenance facilities. Its ultra-compact flat design with 2.31" collapsed height fits where standard cylinders can't, delivering powerful 30-ton force over a 0.50" stroke via grooved plunger ends that eliminate the need for saddles. Featuring base mounting holes for secure fixture attachment, 3/8" NPT fast-flow coupler, and rugged lightweight steel construction, the ZRM-030 operates in any position with reliable high-pressure performance up to 10,000 PSI.

Key Features & Compatibility:

• 30-ton capacity
• 0.50" stroke
• 2.31" min height
• 4.91 sq in effective area
• 2.46 cu in oil capacity
• Grooved plunger ends
• Base mounting holes
• 3/8" NPT coupler
• Single-acting design
• Lightweight 16 lbs

Country of Origin: Taiwan
