Product Description

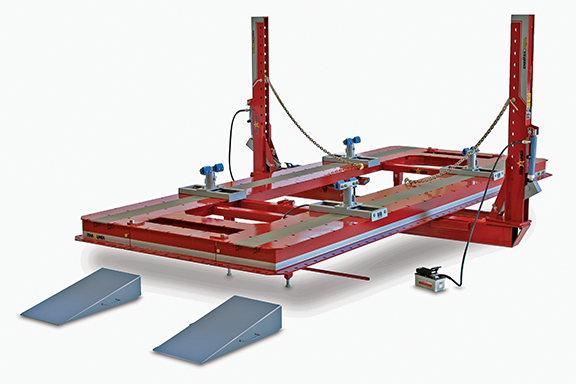

18' Star-A-Liner Cheetah SF Frame Machine II with Hydraulics 9011001 - Designed for unibody cars on up to extended cab trucks. Towers rotate free of floor. Made in the USA! This is the only machine that looks like this that is made in the USA. (Just Ask)
Made in the USA
Compare to Chief, Titan, and S21 frame machines.
CHEETAH SF 18′
Length of bed (top):
18 ft. (549 cm)
Length with towers extended:
23 ft. 9 in. (724 cm)
Width of bed:
84 in. (213 cm)
Width with towers extended:
13 ft. 4 in. (406 cm)
Width of treadway:
24 in. (61 cm)
Width between treadway:
36 in. (91 cm)
Overall height:
7 ft. 11 in. (241 cm)
Tower height:
6 ft. (183 cm)
Working height:
26 in. (66 cm)
Weight:
4800 lbs. (2177 kg)
Power required for hydraulics:
100 psi air (6.89 bar)
Pulling power, hydraulics:
10 ton (9 metric ton)
Pulling radius:
360 degrees
Lift capacity:
7,500 lbs.
