Product Description
18' Star-A-Liner Cheetah II Frame Machine 2 Towers with Hydraulics and ABC Packages 9011182 - Designed for unibody cars on up to extended cab trucks. Made in the USA! This is the only machine that looks like this that is made in the USA. (Just Ask)
Made in the USA
Compare to Chief, Titan, and S21 frame machines.
Includes:
- 18' Cheetah Frame Rack
- Tool Board Package A
0100 B
0205 Dyna-mo C
0200 C
0405 Dyna-mo W
0305 Dyna-mo Jr.
1650 Double Eye Chain Hook
1900 Quick Hook
1100 Handy Link
1250 Panel Puller
1200 Twin Pull
6400 Deep Hook Set
4150 Double Looper
3030 Mo Hook (4 ea.)
2400 Mo #3MA
3110 Small Flat Nose Metal Hook
3120 Large Flat Nose Metal Hook
3130 Small Round Nose Metal Hook
3140 Large Round Nose Metal Hook
6210 3/8” Grab Hook

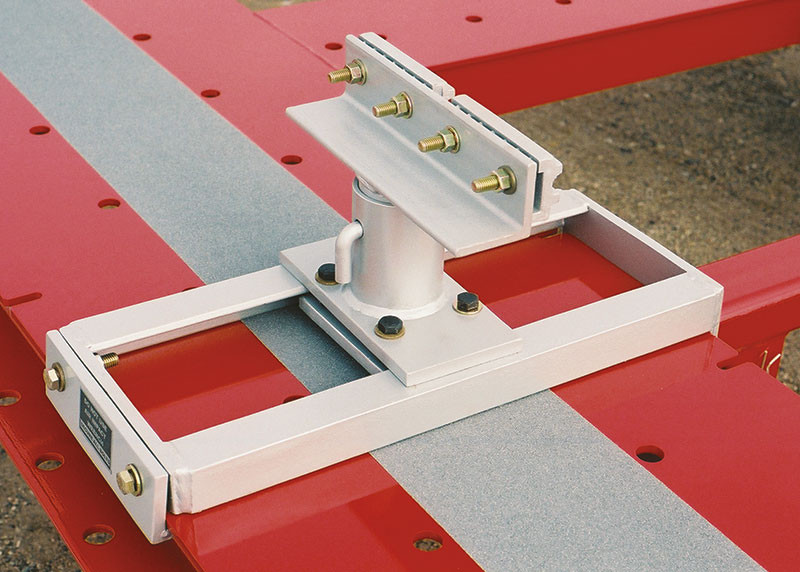

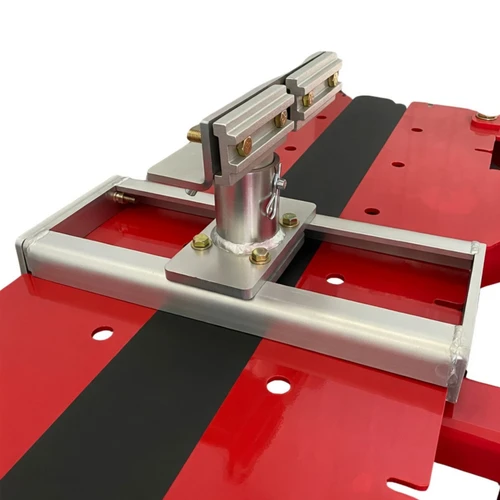

9020003 Unibody Clamp Bar
7634048 Many Hole Bar
6300 Nylon Sling
6350 Cable Sling
2’ x 4’ (61 cm x 122 cm) Display Boards (2 ea.)
- Tool Board Package “B” 9020020 – 324 lbs (147 kg)
Pulling Chains
4, 6, 8, 10, 12 ft. (121, 183, 245, 305, 366 cm)
Wheel Stands (2 ea.)
Winch
Down Pull
Low Pull
Body Lift
Overhead Pull
2’ x 4’ (61 cm x 122 cm) Display Boards (2 ea.)

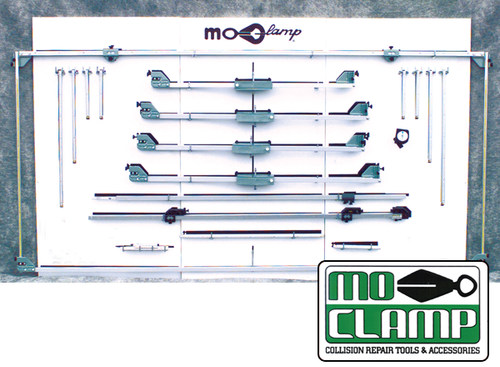

- Tool Board Package C - Mo-Pro Gauges 9020023
78 lbs (35 kg)
Universal Tram Gauge
Deluxe Centerline Gauge
Strut Tower Alignment Gauge
3 – 2’x4’ (61 cm x 122 cm) Display Boards
CHEETAH 18
Length of bed (top):
18 ft. (549 cm)
Length with towers extended:
23 ft. 9 in. (724 cm)
Width of bed:
84 in. (213 cm)
Width with towers extended:
13 ft. 4 in. (406 cm)
Width of treadway:
24 in. (61 cm)
Width between treadway:
36 in. (91 cm)
Overall height:
7 ft. 9 in. (236 cm)
Tower height:
6 ft. (183 cm)
Working height:
24 in. (61 cm)
Weight:
4400 lbs. (1995 kg)
Power required for hydraulics:
100 psi air (6.89 bar)
Pulling power, hydraulics:
10 ton (9 metric ton)
Pulling radius:
360 degrees
Lift capacity:
9,000 lbs
