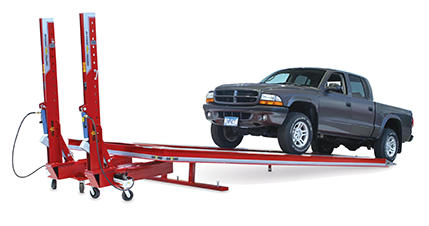

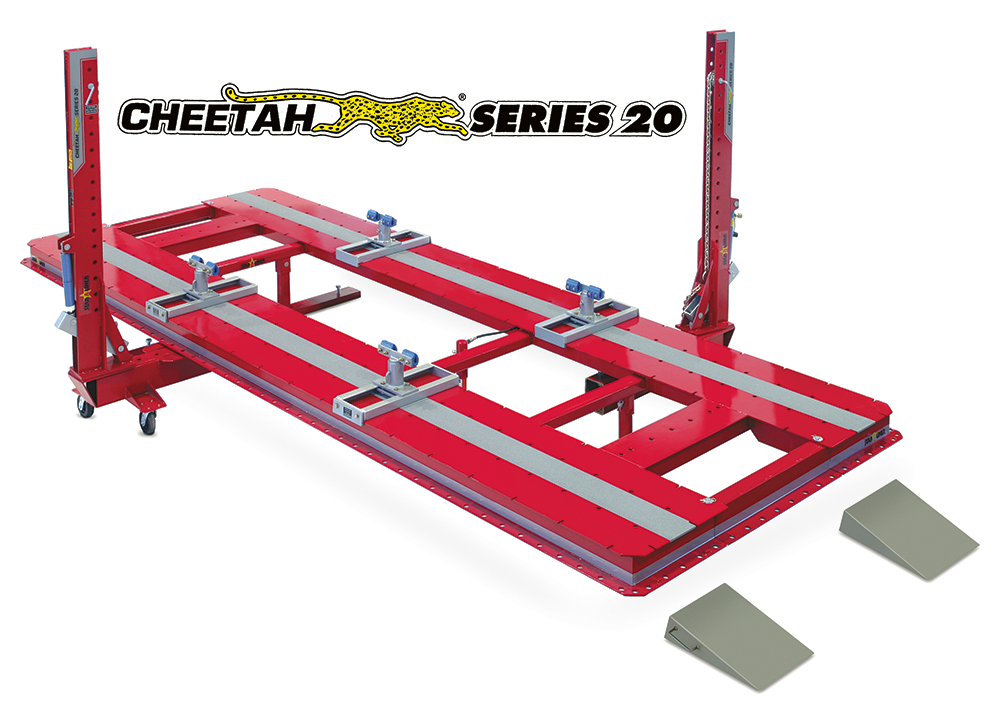

20' Star-A-Liner Cheetah Frame Machine II with Hydraulics 9011200

Product Description

20' Star-A-Liner Cheetah Frame Machine II with Hydraulics 9011200 - Designed for unibody cars on up to full size four door heavy duty dually trucks. Made in the USA! This is the only machine that looks like this that is made in the USA. (Just Ask)

Made in the USA

Compare to Chief, Titan, and S21 frame machines.

CHEETAH SERIES 20

Length of bed (top):

20 ft. (610 cm)

Length with towers extended:

25 ft. 10 in. (787 cm)

Width of bed:

92 in. (234 cm)

Width with towers extended:

14 ft. (427 cm)

Width of treadway:

28 in. (71 cm)

Width between treadway:

36 in. (91 cm)

Overall height:

8 ft. 6 in. (259 cm)

Tower height:

6 ft. 8 in. (203 cm)

Working height:

24 in. (61 cm)

Weight:

6560 lbs. (2975 kg)

Power required for hydraulics:

100 psi air (6.89 bar)

Pulling power, hydraulics:

10 ton (9 metric ton)

Pulling radius:

360 degrees

Lift Capacity:

9,000 lbs.

Lift Capacity with two cylinders:

12,000 lbs.
