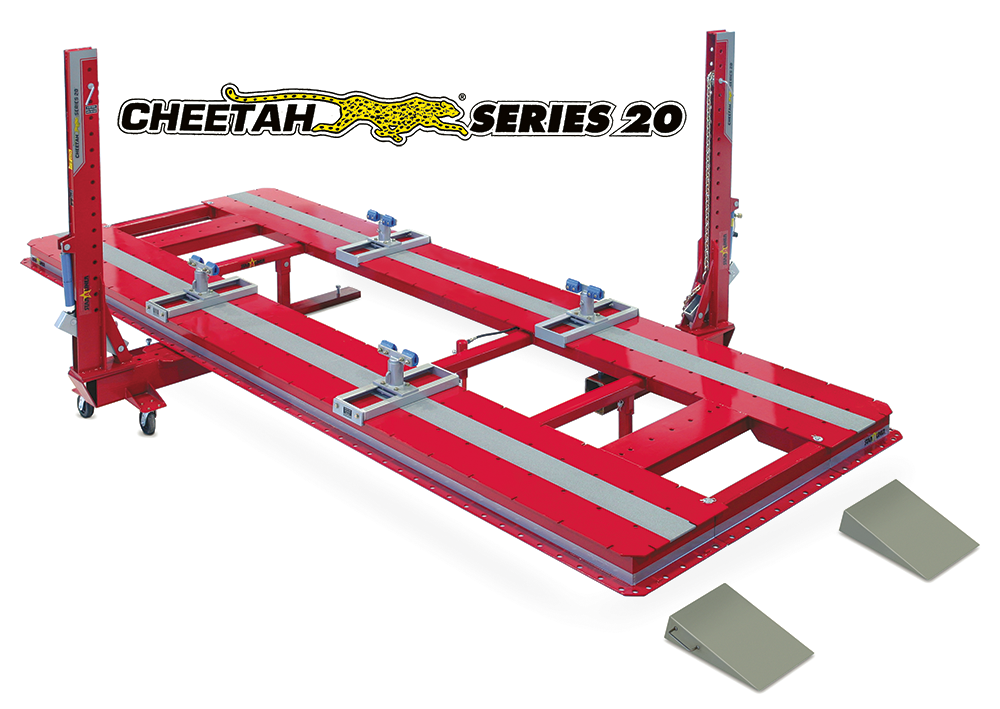

20' Star-A-Liner Cheetah Frame Machine II with Hydraulics and ABC Packages 9011202

Product Description

20' Star-A-Liner Cheetah Frame Machine II with Hydraulics and ABC Packages 9011202 - Designed for unibody cars on up to full size four door heavy duty dually trucks. Made in the USA! This is the only machine that looks like this that is made in the USA.

Compare to Chief, Titan, and S21 frame machines.

Made in the USA

Includes:

• 20' Cheetah Frame Rack
• Tool Board Package A

0100   B
0205   Dyna-mo C
0200   C
0405   Dyna-mo W
0305   Dyna-mo Jr.
1650   Double Eye Chain Hook
1900   Quick Hook
1100   Handy Link
1250   Panel Puller
1200   Twin Pull
6400   Deep Hook Set
4150   Double Looper
3030   Mo Hook (4 ea.)
2400   Mo #3MA
3110   Small Flat Nose Metal Hook
3120   Large Flat Nose Metal Hook
3130   Small Round Nose Metal Hook
3140   Large Round Nose Metal Hook
6210   3/8” Grab Hook
9020003   Unibody Clamp Bar
7634048   Many Hole Bar
6300   Nylon Sling
6350   Cable Sling
2’ x 4’  (61 cm x 122 cm) Display Boards  (2 ea.)

• Tool Board Package “B” 9020020 – 324 lbs (147 kg)

Pulling Chains
4, 6, 8, 10, 12 ft. (121, 183, 245, 305, 366 cm)
Wheel Stands (2 ea.)
Winch
Down Pull
Low Pull
Body Lift
Overhead Pull
2’ x 4’ (61 cm x 122 cm) Display Boards (2 ea.)

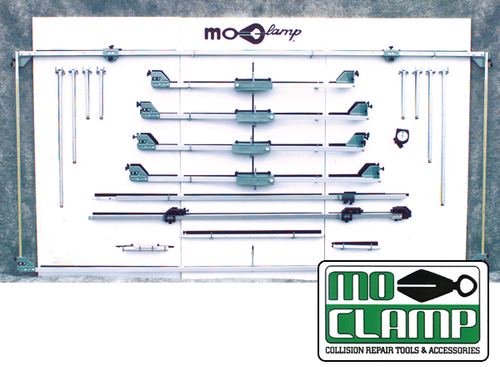

• Tool Board Package C - Mo-Pro Gauges  9020023

78 lbs (35 kg)

Universal Tram Gauge

Deluxe Centerline Gauge

Strut Tower Alignment Gauge

3 – 2’x4’ (61 cm x 122 cm) Display Boards

CHEETAH SERIES 20

Length of bed (top):

20 ft. (610 cm)

Length with towers extended:

25 ft. 10 in. (787 cm)

Width of bed:

92 in. (234 cm)

Width with towers extended:

14 ft. (427 cm)

Width of treadway:

28 in. (71 cm)

Width between treadway:

36 in. (91 cm)

Overall height:

8 ft. 6 in. (259 cm)

Tower height:

6 ft. 8 in. (203 cm)

Working height:

24 in. (61 cm)

Weight:

6560 lbs. (2975 kg)

Power required for hydraulics:

100 psi air (6.89 bar)

Pulling power, hydraulics:

10 ton (9 metric ton)

Pulling radius:

360 degrees

Lift Capacity:

9,000 lbs.

Lift Capacity with two cylinders:

12,000 lbs.
