Product Description

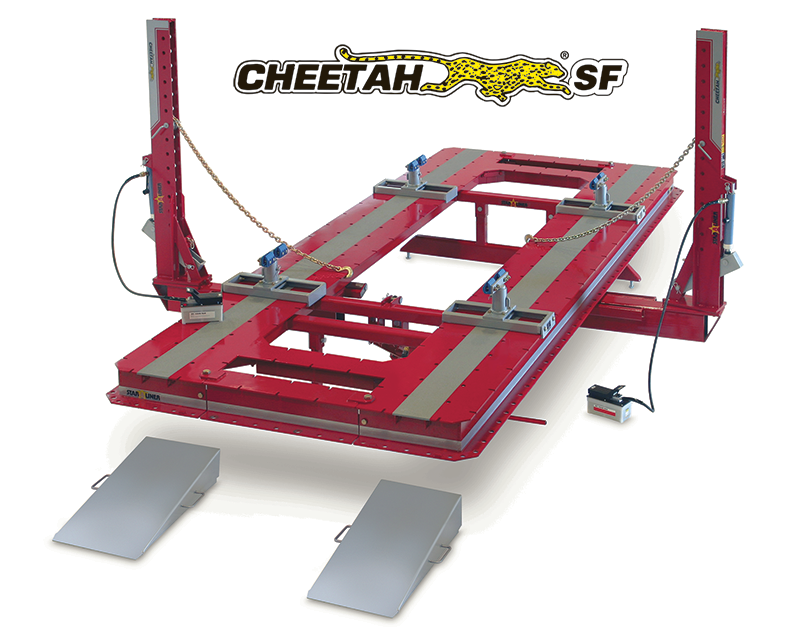

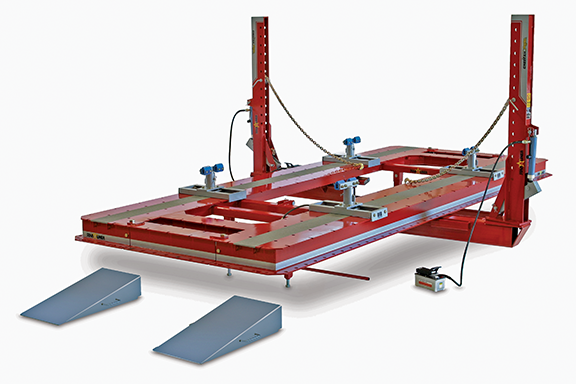

20' Star-A-Liner Cheetah SF Frame Machine II with Hydraulics 9011002 - Designed for unibody cars on up to extended cab trucks. Towers rotate free of floor. Made in the USA! This is the only machine that looks like this that is made in the USA. (Just Ask)
Made in the USA
Compare to Chief, Titan, and S21 frame machines.
CHEETAH SF 20′
Length of bed (top):
20 ft. (610 cm)
Length with towers extended:
25 ft. 10 in. (785 cm)
Width of bed:
92 in. (234 cm)
Width with towers extended:
13 ft. 4 in. (406 cm)
Width of treadway:
28 in. (71 cm)
Width between treadway:
36 in. (91 cm)
Overall height:
7 ft. 11 in. (241 cm)
Tower height:
6 ft. (183 cm)
Working height:
26 in. (66 cm)
Weight:
5500 lbs. (2495 kg)
Power required for hydraulics:
100 psi air (6.89 bar)
Pulling power, hydraulics:
10 ton (9 metric ton)
Pulling radius:
360 degrees
Lift capacity:
7,500 lbs.
