Description

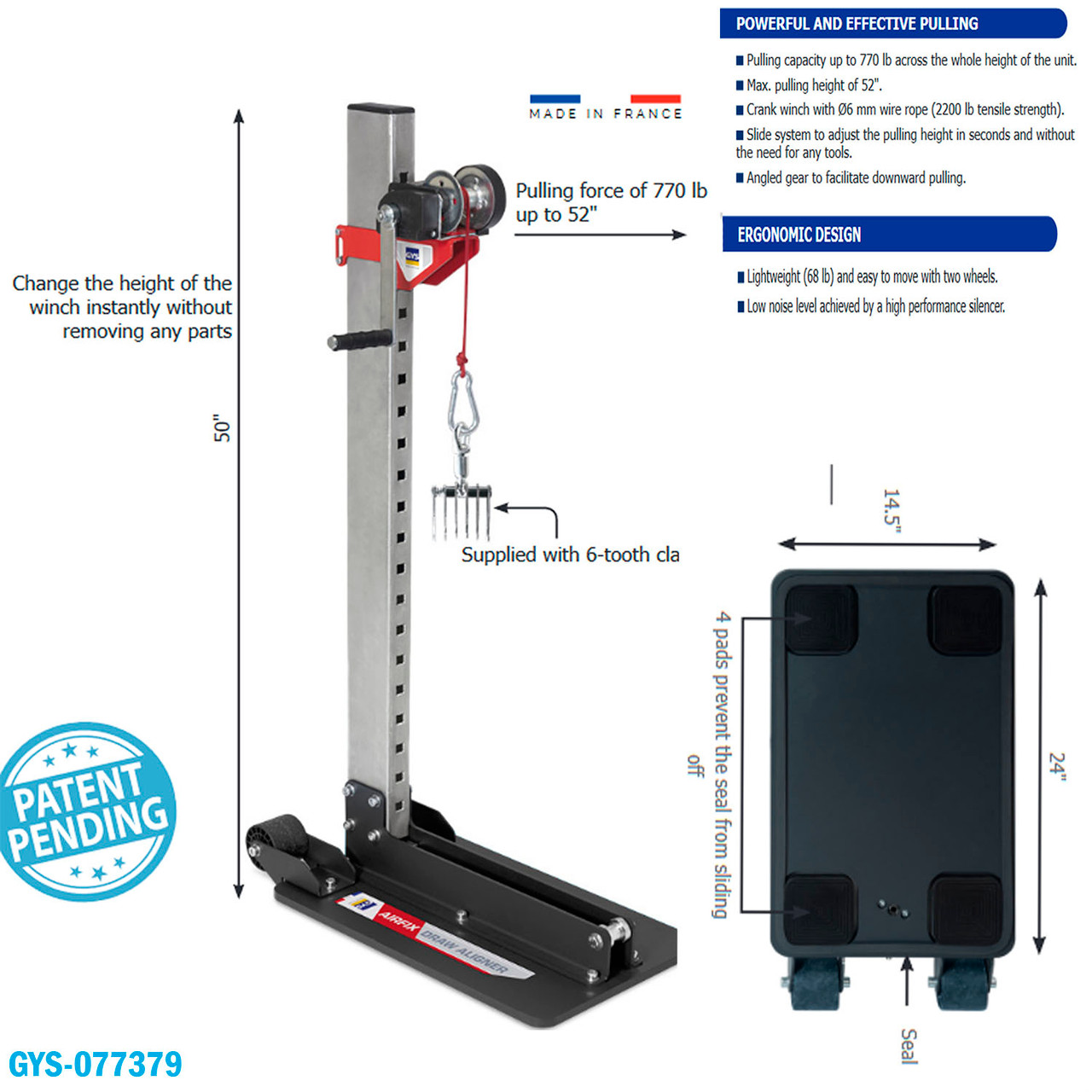

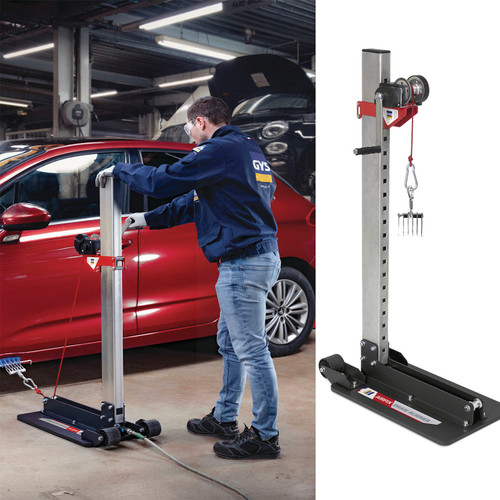

The GYS AIRFIX 077379 Draw Aligner combines a compressed-air-operated vacuum base with a manual winch for controlled automotive dent pulling. Its adjustable carriage lets technicians position the pull without tools or component removal, while an angled gear arrangement facilitates downward pulling.

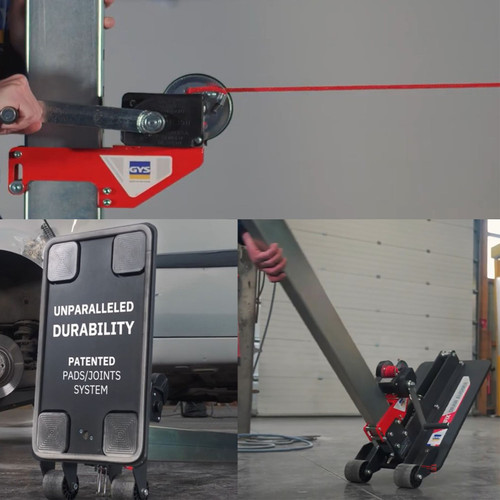

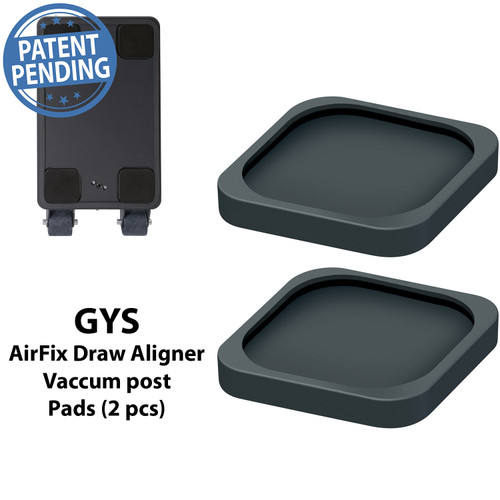

Four rubber pads beneath the suction plate absorb shearing forces and help keep the perimeter seal in place. The seal sits in a recessed channel without glue, allowing quick replacement when needed. Two wheels provide convenient shop mobility, and a high-performance silencer reduces operating noise.
Key Features & Benefits
- 770 lb Pulling Force: Available across the working height.
- 52" Maximum Pulling Height: Adjust to the repair area.
- Tool-Free Carriage: Quickly reposition the winch.

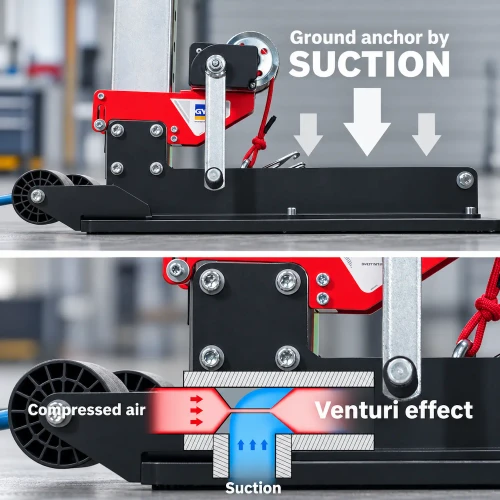

- Vacuum Base: Anchors using compressed air.
- Serviceable Seal & Pads: Simplify maintenance.
Package Includes
- (1) AIRFIX Draw Aligner with vacuum base and transport wheels
- Manual crank winch with 6 mm wire rope
- (1) Six-tooth pulling claw
Ideal Applications
- Automotive panel dent removal
- Adjustable-height and downward pulls
- Collision centers and independent body shops
- Dealership and fleet body repair
Specifications
- Brand: GYS
- Manufacturer Part Number: 077379
- Grade A Tools SKU: GYS-077379
- Model: AIRFIX Draw Aligner
- Product Type: Vacuum-Anchored Dent Pulling Post
- Maximum Pulling Force: 770 lb
- Maximum Pulling Height: 52"
- Winch Operation: Manual crank
- Height Adjustment: Tool-free sliding carriage
- Wire Rope Diameter: 6 mm
- Wire Rope Tensile Strength: 3,300 lb
- Air Supply Pressure: 72–116 PSI
- Air Connection: R 1/4
- Suction Plate Dimensions: 24" × 14.5"
- Stabilizing Pads: 4 rubber pads
- Seal: Recessed, replaceable, installed without glue
- Noise Reduction: High-performance silencer
- Transport Wheels: 2
- Product Weight: 68 lb
- Country of Manufacture: France
