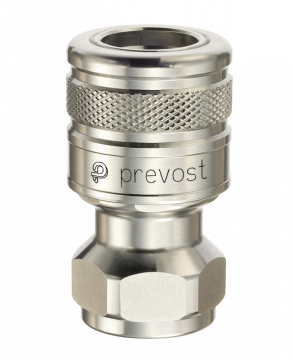

Description
NPT female thread 3/4" FNPT
Operating pressure 0 to 145 psi
Flow rate 6.34 GPM (ΔP = 4.35 psi valved coupling), 8.85 GPM (ΔP = 4.35 psi straight through-coupling)
ID Passage 9 mm
Temperature +5°F to +140°F
Construction Brass body
| Reference | NPT female thread | GHT female thread |
|---|---|---|
| ELS 091204 | 3/4" FNPT | 3/4" FGHT |
