Description

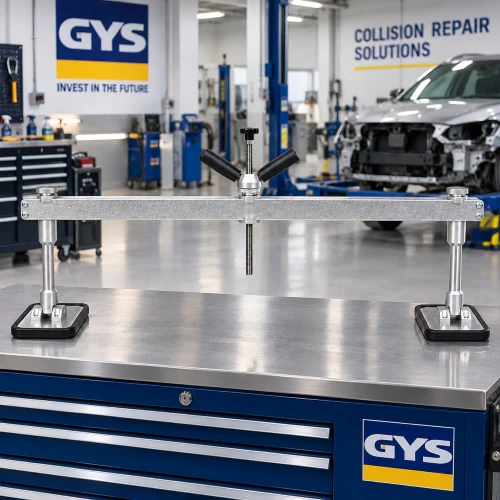

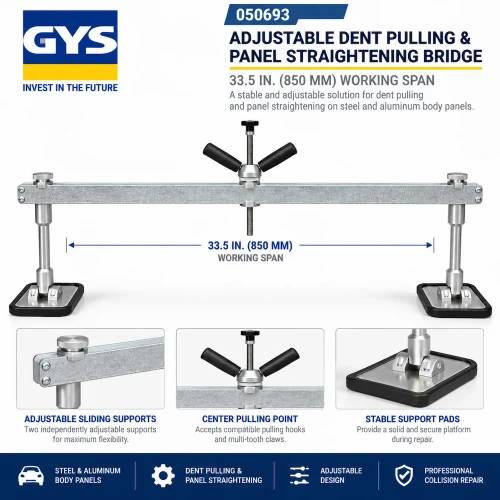

The GYS Adjustable Dent Pulling & Panel Straightening Bridge provides a stable platform for correcting dents and reshaping damaged steel and aluminum body panels. Two sliding supports can be independently positioned along the 33.5-inch (850 mm) bridge, allowing technicians to adapt the setup to different repair areas and panel contours.
The bridge features an M10 male threaded connection point that accepts compatible M10 female threaded pulling attachments, including pulling hooks, claws, and PDR/glue pulling accessories. This allows different attachments to be selected based on the repair process and pulling application.
Key Features & Benefits
- Adjustable bridge for dent pulling and panel straightening
- 33.5 in. (850 mm) working span
- M10 male threaded pulling connection point
- Accepts M10 female threaded attachments
- Designed for steel and aluminum body panel repair
- Two independently adjustable sliding supports
- Adapts to different dent sizes and panel contours
- Provides a stable platform for controlled pulling
- Accepts compatible pulling hooks and multi-tooth claws
- Suitable for concentrated and wider panel repairs
- Genuine GYS collision repair tool
Package Includes
- (1) GYS 050693 Adjustable Pulling Bridge
- (2) Sliding Supports
- Pulling hooks and claws are sold separately.
Compatible Pulling Attachments & Accessories
- GYS 079830 — PDR Glue Bridge Pulling Hook Attachment — M10 Female Thread
- GYS 049758 — 4-Tooth Pulling Claw — M10 / M14
- GYS 049734 — 6-Tooth Pulling Claw — M10 / M14
- GYS 049741 — 8-Tooth Pulling Claw — M10 / M14
- GYS 051171 — 47.2" (1200 mm) Reinforced Extension Bar
- GYS 050723 — Double Pad Support
Ideal Applications
- Steel dent repair
- Aluminum dent repair
- Collision repair
- Body panel straightening
- Localized dent correction
- Larger panel damage
- Panel reshaping
- Welded pulling applications
- Collision centers and body shops
Specifications
- Brand: GYS
- Manufacturer Part Number: 050693
- Product Type: Adjustable Dent Pulling & Panel Straightening Bridge
- Bridge Length: 33.5 in. (850 mm)
- Maximum Working Span: 30.7 in. (780 mm)
- Sliding Supports: 2
- Pulling Connection: M10 Male Thread
- Compatible Attachment Thread: M10 Female
- Compatible Attachment Types: Pulling Hooks, Pulling Claws & PDR/Glue Pulling Attachments
- Panel Applications: Steel & Aluminum
- Primary Use: Dent Pulling & Panel Straightening
- Pulling Attachments: Sold Separately
