Description

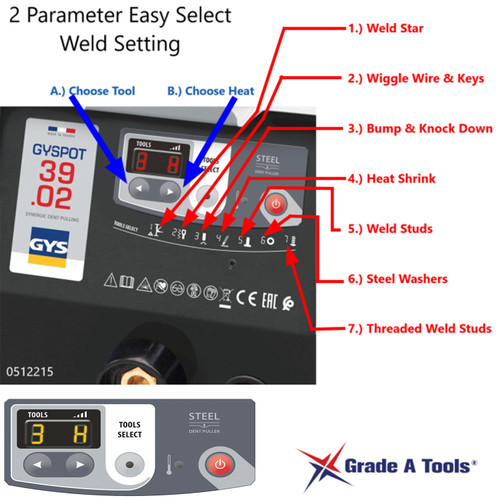

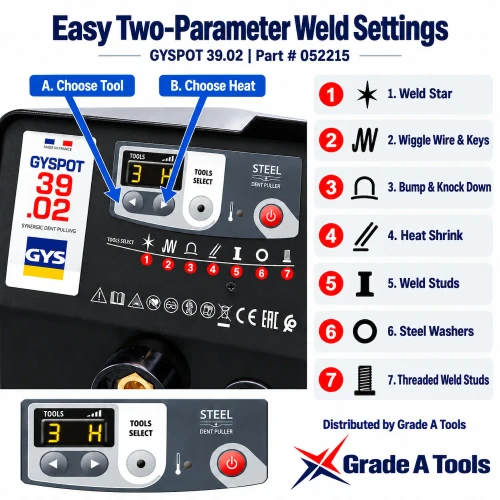

The GYS 052215 GYSPOT 39.02 is a 230V digital steel dent pulling system with a maximum output of 3,800 amps, designed for professional collision repair and steel panel straightening. Its digital control panel simplifies setup with 11 power levels and 7 tool settings. Select the power level and tool being used without separately adjusting welding current and welding time.
The automatic gun triggers the weld when the tool contacts the prepared steel panel. This multifunction system supports star pulling, welding of studs, rivets and rings, contact shrinking and graphite electrode heating. It includes a slide hammer, gun and ground cables, and an accessory box with consumables for steel dent repair.
Key Features & Benefits
- 3,800A Maximum Output: Supports steel dent pulling and panel straightening.
- Simple Digital Controls: Select the power level and tool setting for the repair.
- Automatic Contact Welding: Triggers the weld when the tool touches the prepared panel.
- 11 Power Levels: Adjust output to suit the selected repair operation.
- 7 Tool Settings: Support multiple attachment and shrinking functions.
- Multifunction Gun: Handles star pulling, stud, rivet and ring welding, and heating operations.
- Included Slide Hammer: Provides pulling capability for dent repair.
- Disconnectable Gun Cable: Allows the gun cable to be removed from the machine.
Package Includes
- (1) GYS GYSPOT 39.02 steel dent pulling machine
- (1) Multifunction automatic gun with 6.6 ft. cable
- (1) Slide hammer
- (1) Ground cable, 6.6 ft.

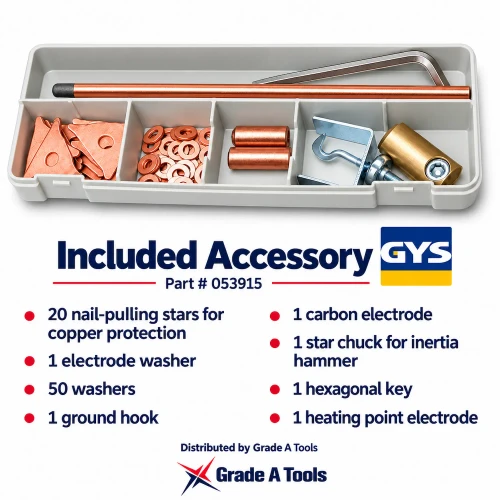

- (1) Accessory box with consumables — GYS 053915
- (1) Power supply cable, 13.1 ft.
Ideal Applications
- Steel vehicle panel dent pulling and straightening
- Professional collision repair and auto body shop work
- Welding pulling studs, rivets and rings
- Star pulling with a slide hammer
- Contact shrinking and localized graphite electrode heating
Specifications
- Brand: GYS
- Manufacturer Part Number: 052215
- Grade A Tools SKU: GYS-052215
- Model: GYSPOT 39.02
- Product Type: Digital Steel Dent Pulling System
- Panel Material: Steel
- Power Supply: 230V
- Frequency: 50/60 Hz
- Maximum Output Current: 3,800A
- Control Type: Digital, synergic
- Power Levels: 11
- Tool Settings: 7
- Gun Activation: Automatic contact triggering
- Gun Cable Length: 6.6 ft. (2 m)
- Ground Cable Length: 6.6 ft. (2 m)
- Gun and Ground Cable Cross Section: 70 mm²
- Power Cable Length: 13.1 ft. (4 m)
- Country of Manufacture: France
- Standard: EN 60974-1

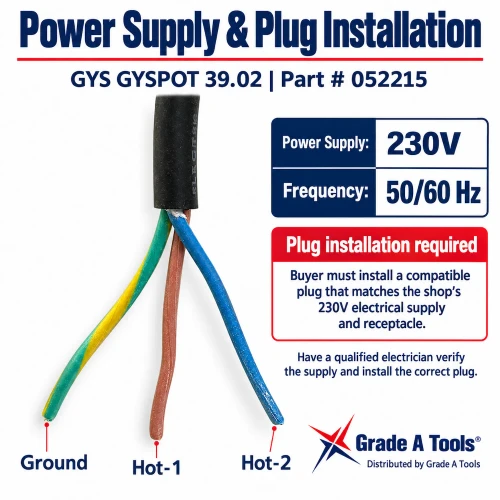

Note: Works with 208-230 voltage, due to large variations in the type of plugs used across the country this comes with pigtail only and you must wire it to fit your wall plug.
