Description

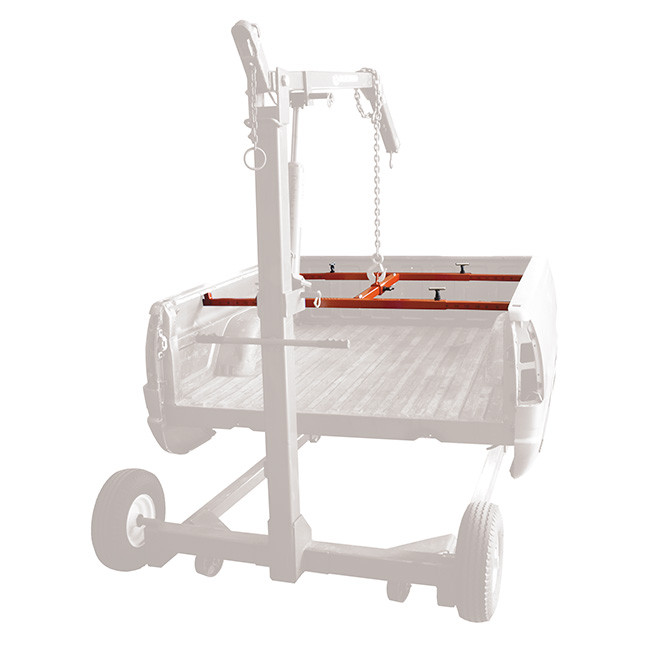

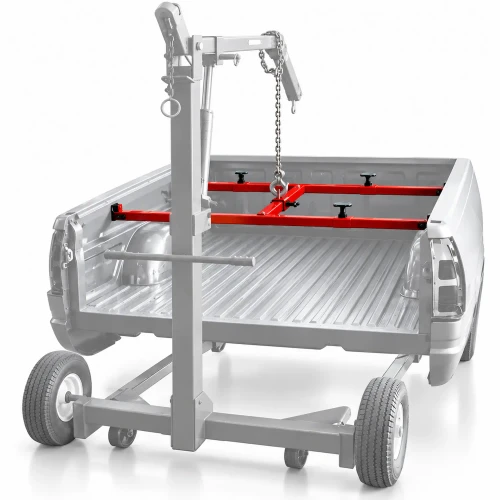

The Innovative Tools I-BL Truck Bed Lift allows one technician to lift and remove a pickup truck bed when used with an engine hoist or overhead electric hoist. With a 600 lb maximum load capacity and support arms that adjust from 40" to 70" wide, it helps collision repair shops reduce the manpower needed for bed removal during body repair, replacement and refinishing.
Four rubber-padded support arms help protect vehicle surfaces, while measurement markings on both sides assist with centering the bed. An adjustable center hook accommodates a chain attachment to help distribute the weight evenly. Heavy-duty steel construction and a powder-coated finish provide durability for repeated use in busy auto body shops.
Key Features & Benefits
- One-Technician Operation: Lift and remove beds with a hoist.
- 600 lb Capacity: Handles truck beds up to the rated load.
- 40"–70" Adjustable Width: Positions arms to fit the bed.
- Rubber-Padded Arms: Help protect vehicle surfaces.
- Centering Marks & Adjustable Hook: Help balance the load.
- Powder-Coated Steel: Durable construction for shop use.

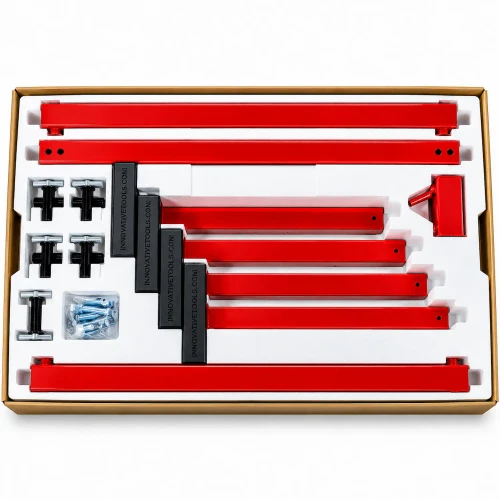

Package Includes
- (1) Innovative Tools I-BL Truck Bed Lift
Ideal Applications
- Pickup truck bed removal and replacement
- Truck bed collision repair
- Pickup bed refinishing and painting
- Automotive collision repair centers
- Independent auto body shops
- Dealership body shops
- Fleet repair facilities
Specifications
- Brand: Innovative Tools & Technologies
- Manufacturer Part Number: I-BL
- Product Name: Innovative Bed Lift
- Product Type: Pickup Truck Bed Lifting Attachment
- Maximum Load Capacity: 600 lb
- Support Arm Adjustment Range: 40"–70" wide
- Number of Support Arms: 4
- Support Arm Padding: Rubber
- Pad Dimensions: 6-3/8" L × 1-1/2" W × 7/8" H

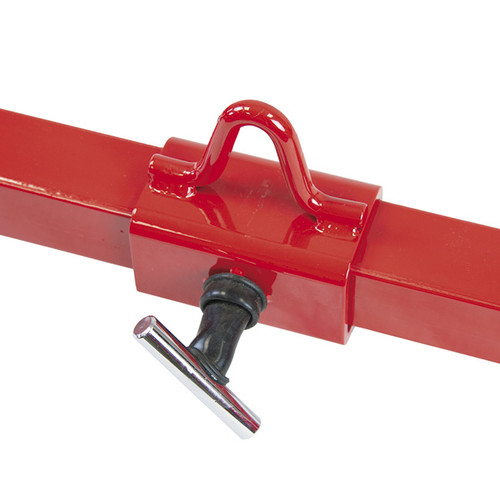

- Center Hook: Adjustable
- Centering Guides: Measurement markings on both sides
- Construction: Heavy-duty steel
- Finish: Powder coat
- Product Weight: 42 lb
- Recommended Lifting Equipment: Engine hoist or overhead electric hoist
- Primary Application: Pickup truck bed removal for collision repair and refinishing
Warranty Information
Innovative Tools products are covered by a 3-Year Limited Warranty against defects in materials and workmanship. Damage from accident, misuse, abuse, or improper installation is not covered.
See the Innovative Tools 3-Year Limited Warranty for complete terms.
