Mo-Clamp 4047 Frame Rack Draw Bar

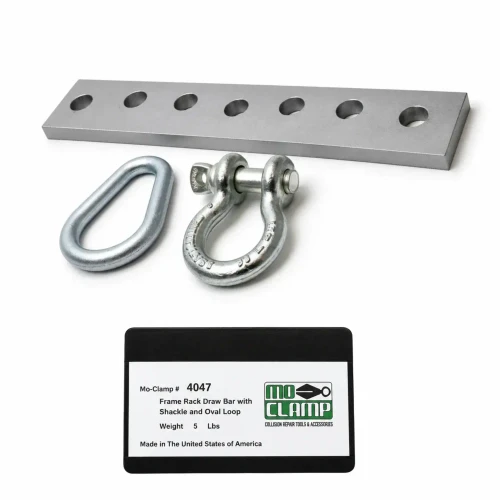

The Mo-Clamp 4047 Frame Rack Draw Bar with Shackle & Oval Loop is a professional 3-ton pulling accessory designed for frame straightening and structural collision repairs. It bolts directly to a frame, unibody rail, or other secure mounting locations to create a dependable pulling point for a wide variety of repair applications.

The draw bar features a combination of hole patterns that provide flexible mounting options and can be used with a variety of Mo-Clamp accessories for specialized pulling configurations.

Key Features & Benefits

• Genuine Mo-Clamp product
• 3-ton (6,000 lb. / 2,722 kg) pulling capacity
• Includes #4044 1/2-inch Screw Pin Shackle
• Includes #4043 Oval Loop
• Multiple hole patterns for versatile mounting
• Bolts directly to frame or unibody rails
• Compatible with numerous Mo-Clamp pulling accessories
• Heat-treated steel construction
• Built for professional collision repair
• Made in USA

Package Includes

• (1) Mo-Clamp 4047 Frame Rack Draw Bar
• (1) #4044 1/2-Inch Screw Pin Shackle
• (1) #4043 Oval Loop

Ideal Applications

• Collision repair centers
• Auto body repair shops
• Frame straightening
• Structural pulling
• Frame rack systems
• Unibody repairs
• Custom pulling setups
• Restoration projects
• Fleet maintenance facilities

Specifications

• Brand: Mo-Clamp
• Manufacturer Part Number: 4047
• Product Type: Frame Rack Draw Bar with Shackle & Oval Loop
• Pulling Capacity: 3 Tons (6,000 lbs. / 2,722 kg)
  Overall Length: 14-1/2 in. (368 mm)
• Width: 2-1/2 in. (64 mm)
• Weight: 5 lbs. (2.27 kg)
• Replacement Parts: #4044 1/2-Inch Screw Pin Shackle, #4043 Oval Loop
