Description

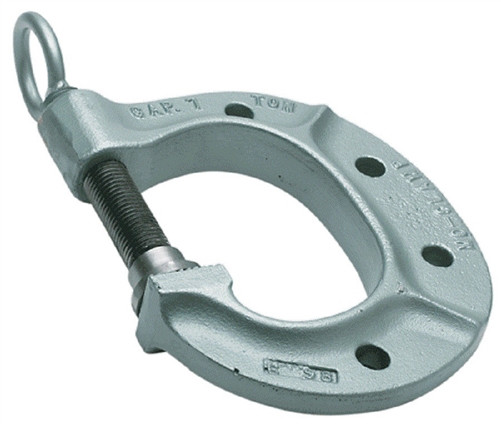

The Mo-Clamp 5802 Jumbo G Clamp is a 5-ton pulling clamp with a 7" throat opening designed to reach over, around and behind collision damage. Multiple attachment holes provide different pulling angles, while the included swivel pad provides a secure contact point.
For additional pulling configurations, the 5802 can be used with the optional Mo-Clamp 4059 5/8" Screw Pin Shackle, sold separately.
Key Features & Benefits
- 7" throat opening for reaching deep or obstructed damage
- 5-ton pulling capacity
- Multiple holes for various angle pulls
Includes swivel pad
- Optional #4059 shackle adds pulling versatility
- Large G-clamp configuration for difficult pulling locations
- Heat-treated steel construction
Package Includes
- (1) Genuine Mo-Clamp 5802 Jumbo G Clamp
- (1) Swivel Pad
- Not Included is the Optional Shackle: #4059 5/8" Screw Pin Shackle
Ideal Applications
- Reaching over, around or behind collision damage
- Deep-access structural pulls
- Multiple-angle pulling setups
- Frame straightening
- Unibody structural correction
- Heavy collision damage repair
- Professional frame machine pulling
Specifications
- Brand: Mo-Clamp
- Manufacturer Part Number: 5802
- Product Name: Jumbo G Clamp
- Throat Opening: 7 in.
- Capacity: 5 Tons (10,000 lbs. / 4,536 kg)
- Overall Length: 15-1/2 in. (394 mm)
- Overall Width: 9-1/2 in. (241 mm)
- Weight: 22 lbs. (9.9 kg)
- Material: Heat-Treated Steel
- Included: Swivel Pad
- Optional Shackle: #4059 5/8" Screw Pin Shackle
