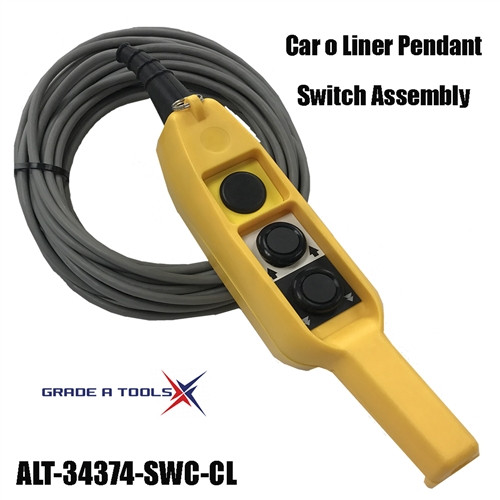

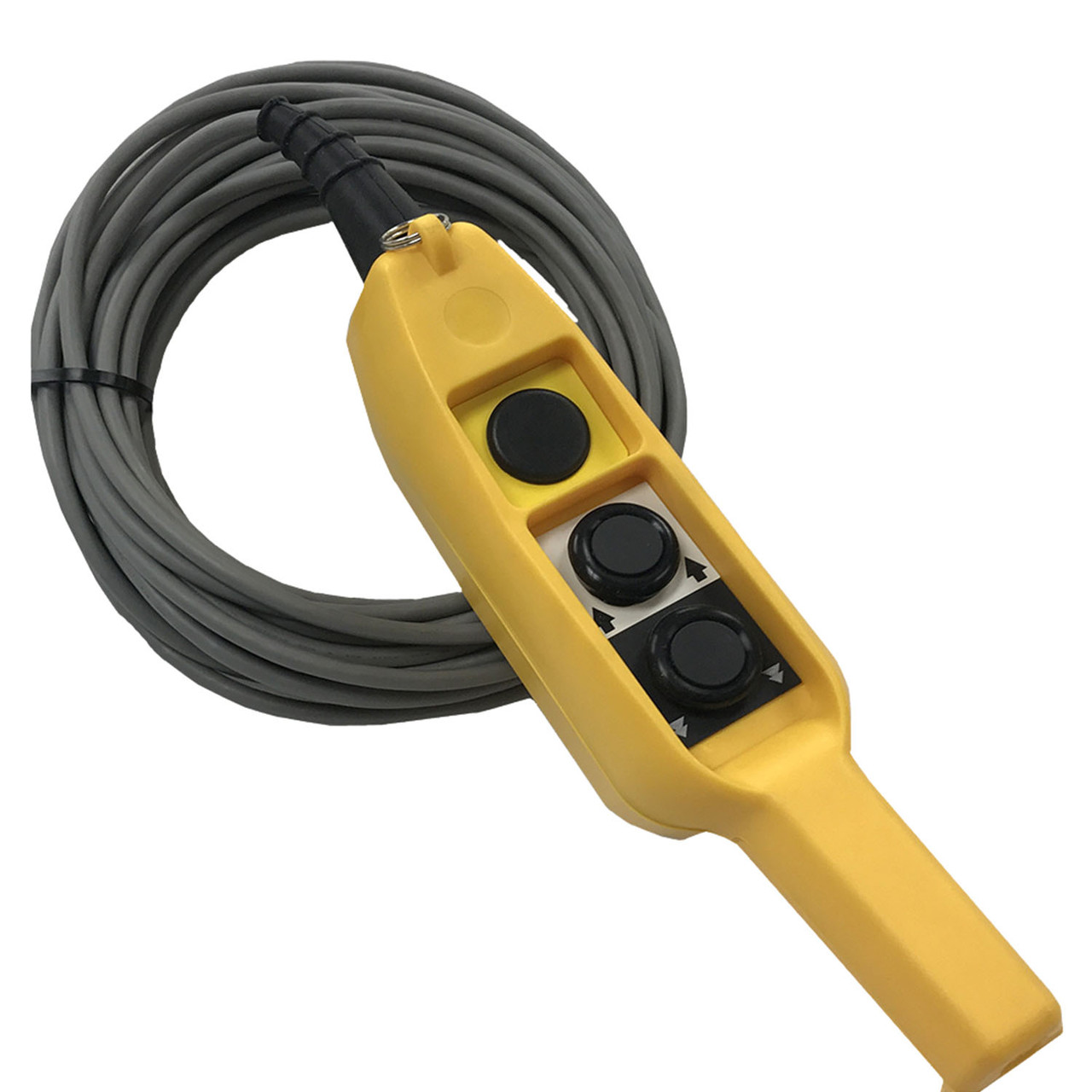

Pendant Switch Assembly - Replaces Car o Liner lift Switch

The Pendant Switch Assembly is a complete waterproof 2-button replacement solution for Car-O-Liner BenchRack and frame machines. This assembly pairs the durable XCD-61ESW style switch with a 35-foot cord, delivering reliable raise and lower control for vehicle lifts and benches in collision repair shops. As a direct-fit OEM-style part, it restores precise operation while handling the demanding conditions of auto body environments.

Key Features & Compatibility:

• Waterproof 2-button design (Up and Down, no E-stop)
• Includes 35-foot cord for extended reach and flexibility
• Exact replacement for Car-O-Liner OEM part numbers 34374, 138-140-2004, and 34506
• Rated AC 250V 5A / AC 500V 2A
• Up button normally open (N/O)
• Down button N/O + N/C, N/O configuration
• Compatible with all Car-O-Liner BenchRack, Mark series, and classic frame machines
• Included with Your Purchase:
• Pendant switch assembly (XCD-61ESW style)
• 35-foot cord (not pre-wired; wiring must be completed by a qualified technician)

Perfect for:

• Collision repair shops replacing worn Car-O-Liner lift controls
• Auto body technicians maintaining BenchRack and frame machine operation
• Restoring reliable up/down functionality on vehicle lifts with extended cord reach
• High-volume body shops needing fast, cost-effective OEM-style replacements with cord

NOTE: This switch is not wired to cord and must be completed by technician to match
wiring of machine on which it will be installed.

NOTE: We are not a Car O Liner distributor
