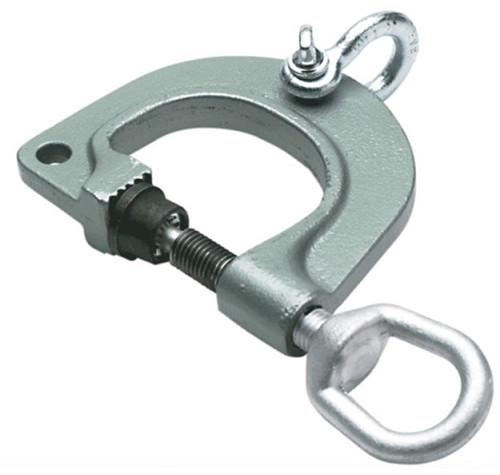

Mo-Clamp 5800 G Clamp

The Mo-Clamp 5800 G Clamp is a 4-ton multi-angle pulling clamp with a 4" throat opening, movable shackle and swivel pad. Its large throat provides room to reach over, around and behind damaged areas, giving technicians greater flexibility when positioning a structural pull.

The movable shackle allows multiple pulling angles, while the swivel pad provides a secure contact point. The clamp is constructed from heat-treated alloy steel for professional collision repair and frame straightening.

Key Features & Benefits

• 4" throat opening provides excellent access around damaged areas
• Movable shackle allows multiple pulling angles
• Swivel pad provides a secure contact point
• Reaches over, around and behind collision damage
• Provides greater flexibility when positioning a pull
• Heat-treated alloy steel construction
• Designed for professional collision repair and frame straightening

Package Includes

• (1) Genuine Mo-Clamp 5800 G Clamp
• (1) Movable Screw Pin Shackle
• (1) Swivel Pad

Ideal Applications

• Multi-angle pulling
• Pulling over, around or behind damaged areas
• Hard-to-reach collision damage
• Frame machine pulling
• Frame rack pulling
• Structural collision repair
• Frame straightening
• Auto body repair

Specifications

• Brand: Mo-Clamp
• Manufacturer Part Number: 5800
• Product Name: G Clamp
• Product Type: Multi-Angle Pulling Clamp
• Capacity: 4 Tons (8,000 lbs. / 3,629 kg)
• Throat Opening: 4 in.
• Overall Length: 10-1/2 in. (267 mm)
• Overall Width: 6 in. (152 mm)
• Weight: 6 lbs. (2.72 kg)
• Shackle: Movable
• Swivel Pad: Included
• Material: Heat-Treated Alloy Steel
• Replacement Shackle: #4055
• Replacement Main Shaft: #520034
• Replacement Swivel Pad: #840065
• Country of Origin: Made in USA
